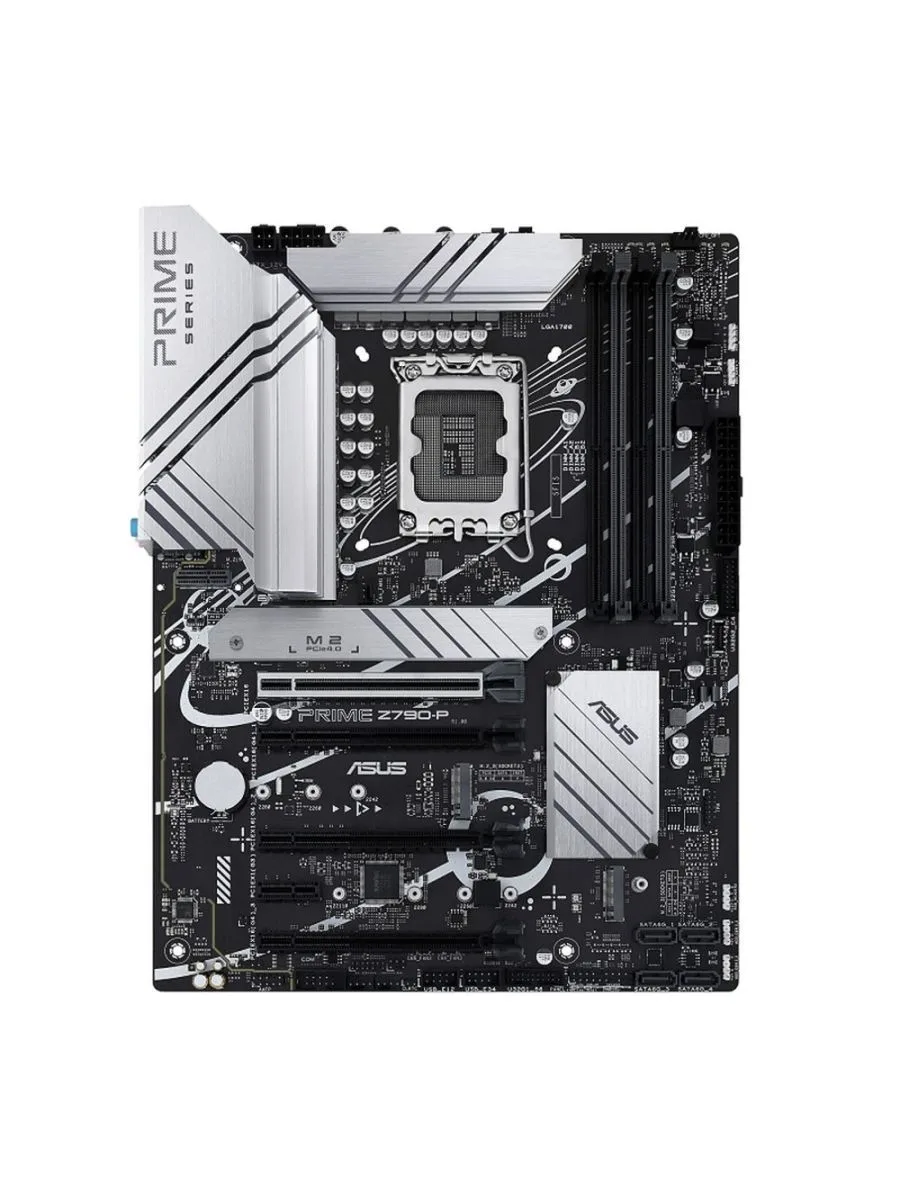

ASUS PRIME Z790-P | Socket LGA 1700 | Intel Z790 | 4× DDR5 | ATX | Motherboard

Warranty	3 jaar via Complies
SKU	90MB1CK0-M0EAY0
EAN	4711081937449
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR5-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Memory channels:	Dual-channel
Non-ECC:	Y
Supported memory clock speeds:	4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Supported memory clock speed (max):	7200 MHz
Maximum internal memory:	128 GB
Unbuffered memory:	Y
Processor
Processor manufacturer:	Intel
Processor socket:	LGA 1700
Compatible processor series:	IntelÂ® CeleronÂ®, IntelÂ® Coreâ„¢ i3, IntelÂ® Coreâ„¢ i5, IntelÂ® Coreâ„¢ i7, IntelÂ® Coreâ„¢ i9, IntelÂ® PentiumÂ® Gold
Supported processor sockets:	LGA 1700
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors:	1
Number of SATA III connectors:	4
S/PDIF out connector:	Y
Front panel audio connector:	Y
ATX Power connector (24-pin):	Y
CPU fan connector:	Y
Number of chassis fan connectors:	3
Peripheral (Molex) power connectors (4-pin):	1
EPS power connector (8-pin):	Y
Number of COM connectors:	1
TPM connector:	Y
Thunderbolt headers:	1
12V power connector:	Y
RGB LED pin header:	Y
Rear panel I/O ports
USB 2.0 ports quantity:	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	1
USB 3.2 Gen 2x2 Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
PS/2 ports quantity:	1
HDMI ports quantity:	1
DisplayPorts quantity:	1
Headphone outputs:	1
Line-in:	Y
Microphone in:	Y
Network
Ethernet LAN:	Y
Ethernet interface type:	2.5 Gigabit Ethernet
Wi-Fi:	Y
Graphics
Parallel processing technology support:	Not supported
Expansion slots
PCI Express x1 (Gen 3.x) slots:	1
PCI Express x16 (Gen 4.x) slots:	3
PCI Express x16 (Gen 5.x) slots:	1
Number of M.2 (M) slots:	3
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	192 Mbit
Clear CMOS button:	Y
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, SATA III
RAID support:	Y
RAID levels:	0, 1, 5, 10
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	Intel
Motherboard chipset:	Intel Z790
Audio output channels:	7.1 channels
Power source type:	ATX
Packaging data
Package width:	338 mm
Package depth:	273 mm
Features
Windows operating systems supported:	Windows 10 x64, Windows 11
Packaging data
Package height:	68 mm
Package weight:	1.58 kg
Weight & dimensions
Width:	305 mm
Depth:	234 mm
Packaging content
Cables included:	SATA
Drivers included:	Y
Other features
Number of M.2 (E) slots:	1

Productomschrijving

The ASUS PRIME Z790-P is a powerful motherboard designed for the latest generation of Intel processors with LGA 1700 socket. With its ATX format, this motherboard offers a comprehensive set of features and capabilities for home users and professionals alike.

This motherboard features the Intel Z790 chipset, which ensures high performance and efficiency.
