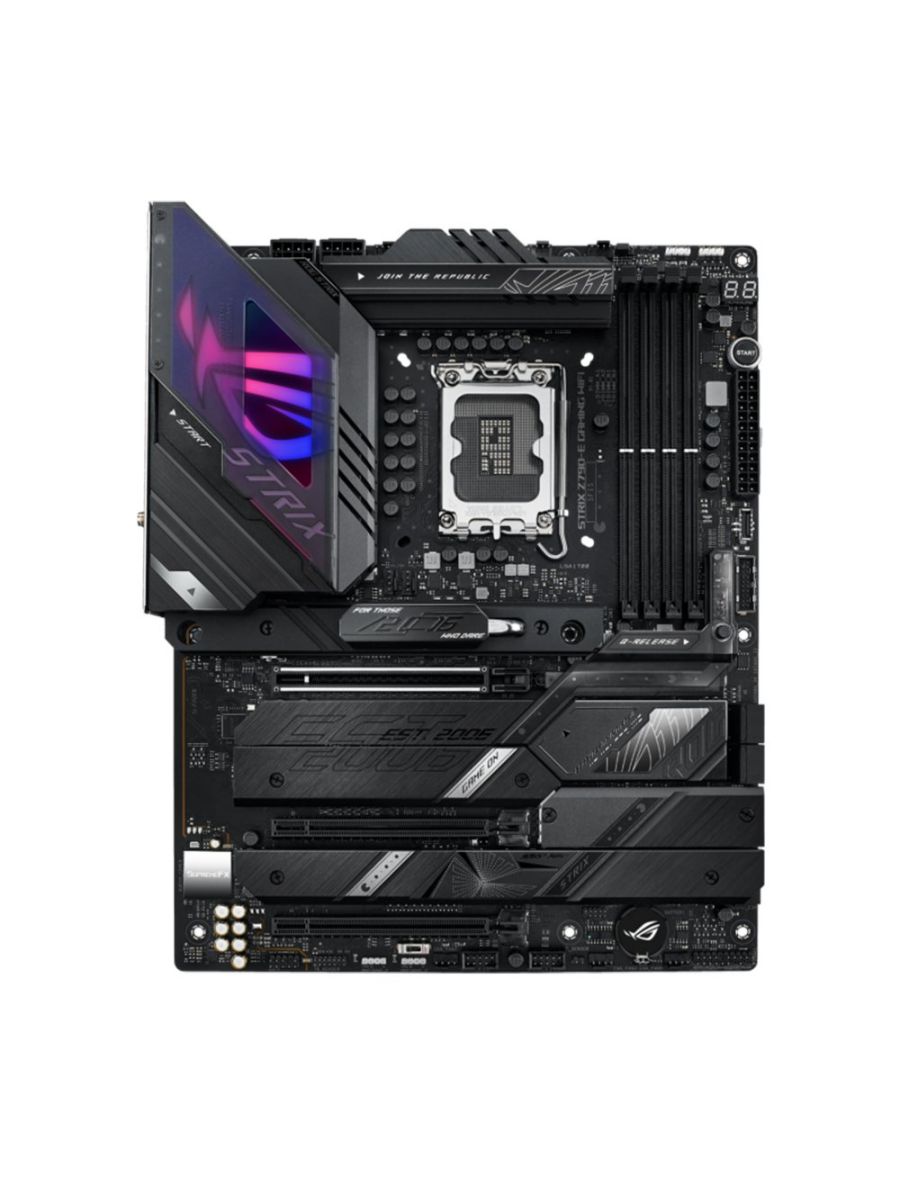

ASUS ROG STRIX Z790-E GAMING WIFI | Socket LGA 1700 | Intel Z790 | 4xDDR5 | ATX | Motherboard

Warranty	2 jaar via Complies
SKU	90MB1CL0-M0EAY0
EAN	4711081938538
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR5-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Memory channels:	Dual-channel
Non-ECC:	Y
Supported memory clock speeds:	4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800 MHz
Supported memory clock speed (max):	7800 MHz
Maximum internal memory:	128 GB
Unbuffered memory:	Y
Processor
Processor manufacturer:	AMD
Processor socket:	LGA 1700
Compatible processor series:	IntelÂ® CeleronÂ®, IntelÂ® Coreâ„¢ i3, IntelÂ® Coreâ„¢ i5, IntelÂ® Coreâ„¢ i7, IntelÂ® Coreâ„¢ i9, IntelÂ® PentiumÂ® Gold
Supported processor sockets:	LGA 1700
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors:	1
Number of SATA III connectors:	4
Front panel audio connector:	Y
ATX Power connector (24-pin):	Y
CPU fan connector:	Y
Number of chassis fan connectors:	5
EPS power connector (8-pin):	Y
Thunderbolt headers:	1
12V power connector:	Y
RGB LED pin header:	Y
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:	1
USB 3.2 Gen 2x2 Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
HDMI ports quantity:	1
HDMI version:	2.1
DisplayPorts quantity:	1
DisplayPort version:	1.4
Headphone outputs:	1
Line-in:	Y
Microphone in:	Y
S/PDIF out port:	Y
WiFi-AP antenna jack:	2
Network
Ethernet LAN:	Y
Ethernet interface type:	2.5 Gigabit Ethernet
Wi-Fi:	Y
Top Wi-Fi standard:	Wi-Fi 6E (802.11ax)
Wi-Fi standards:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth:	Y
Bluetooth version:	5.3
Graphics
Parallel processing technology support:	Not supported
Expansion slots
PCI Express x1 (Gen 3.x) slots:	1
PCI Express x16 (Gen 4.x) slots:	2
PCI Express x16 (Gen 5.x) slots:	1
Number of M.2 (M) slots:	5
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	256 Mbit
Clear CMOS button:	Y
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, SATA III
RAID support:	Y
RAID levels:	0, 1, 5, 10
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	Intel
Motherboard chipset:	Intel Z790
Audio chip:	Realtek ALC4080
Audio output channels:	7.1 channels
Power source type:	ATX
Packaging data
Package width:	343 mm
Package depth:	273 mm
Features
Windows operating systems supported:	Windows 10, Windows 11
Packaging data
Package height:	77 mm
Package weight:	2.68 kg
Weight & dimensions
Width:	305 mm
Depth:	244 mm
Packaging content
Cables included:	SATA
User guide:	Y
Drivers included:	Y
Other features
Back-to-BIOS button:	Y

Productomschrijving

With support for DDR5-SDRAM memory and a maximum memory capacity of 128 GB, this motherboard provides ample space for multitasking and advanced applications. It features DIMM memory slots for easy expandability.

This motherboard offers various storage options with M.2 interfaces and SATA III ports, suitable for both HDDs and SSDs. Moreover, it supports various RAID configurations (0, 1, 5, 10) for data protection and performance enhancement.
