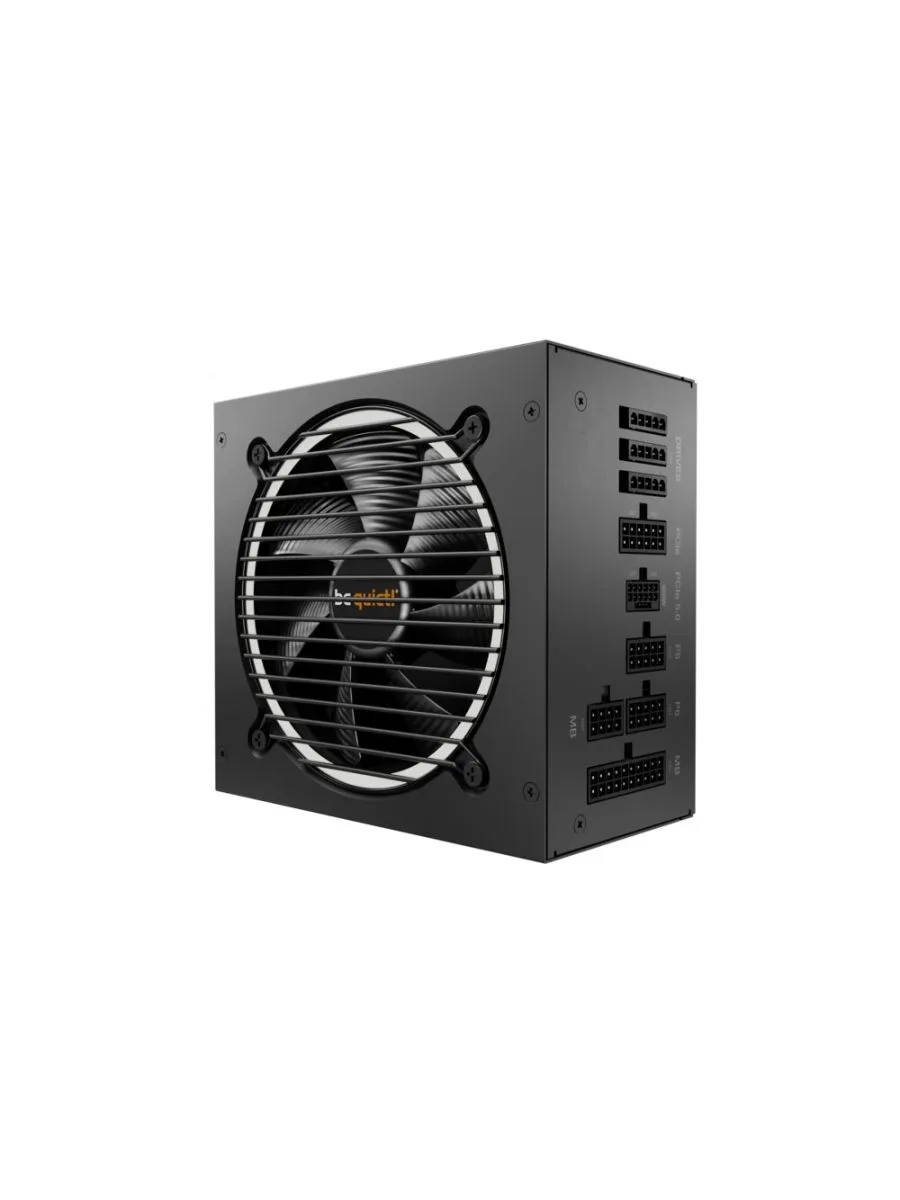

be quiet! Pure Power 12 M | 650 Watt Gold ATX 3.0 PSU | Modular | Power Supply | PSU

Warranty	3 jaar via Complies
SKU	BN342
EAN	4260052189474
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Power
Total power:	650 W
Peak power:	720 W
AC input voltage:	100 - 240 V
AC input frequency:	50/60 Hz
Input current:	10/5 A
Power factor:	0.98
Power Factor Correction (PFC) type:	Active
Combined power (+3.3V):	120 W
Combined power (+12V):	650 W
Combined power (+5V):	120 W
Combined power (-12V):	3.6 W
Combined power (+5Vsb):	15 W
Max output current (+3.3V):	20 A
Max output current (+12V1):	32 A
Max output current (+12V2):	28 A
Max output current (+5V):	20 A
Max output current (-12V):	0.3 A
Max output current (+5Vsb):	3 A
Efficiency:	92.7%
Power Good signal delay range:	100 - 150 ms
Power protection features:	Over current, Over power, Over voltage, Overheating, Short circuit
Ports & interfaces
Motherboard power connector:	20+4 pin ATX
Motherboard power cable length:	55 cm
Number of SATA power connectors:	5
Number of PATA power connectors:	2
SATA power cable length:	500,650,800,950 mm
Peripheral (Molex) power connectors (4-pin):	1
Peripheral (Molex) power cable length:	550 mm
EPS power connector (4+4 pin):	Y
PCI Express power connectors (6+2 pin):	2
CPU P4 connector (4-pin):	1
ATX power connector (20+4 pin):	Y
PCI Express connector:	Y
Performance
Purpose:	PC
Power supply unit (PSU) form factor:	ATX
80 PLUS certification:	80 PLUS Gold
ATX version:	3.0
EPS version:	2.92
Noise level:	19.9 dB
Mean time between failures (MTBF):	100000 h
Design
Product colour:	Black
Cooling type:	Active
Fan diameter:	12 cm
Number of fans:	1 fan(s)
Fan location:	Top
On/off switch:	Y
Packaging content
Cables included:	PATA, PCIe, Peripheral (Molex), SATA
Technical details
Sustainability compliance:	Y
Sustainability certificates:	ENERGY STAR, ErP, RoHS
Warranty period:	10 year(s)
Operational conditions
Operating temperature (T-T):	0 - 40 Â°C
Weight & dimensions
Width:	160 mm
Depth:	150 mm
Height:	86 mm
Packaging data
Package type:	Box
Other features
Screws included:	Y
Number of screws:	5
Cable ties included:	Y
Noise level (silent mode, <30%):	8.1 dB
Noise level (quiet mode, 50%):	9.1 dB
Noise level (full-load mode, 100%):	19.9 dB

Productomschrijving

The BN342 be quiet! Pure Power 12 M power supply is a reliable and powerful power supply designed for gamers, PC enthusiasts and system builders who demand high performance and reliability. With an output of 650 watts, this power supply delivers enough power to power even the most demanding systems.

This power supply features a 20+4 pin ATX connector, making it compatible with a wide range of motherboards. This ensures that you can use the power supply with different PC configurations and make upgrades without worrying about compatibility.

More…

be quiet! Pure Power 12 M | 650 Watt Gold ATX 3.0 PSU | Modular | Power Supply | PSU

Productomschrijving
