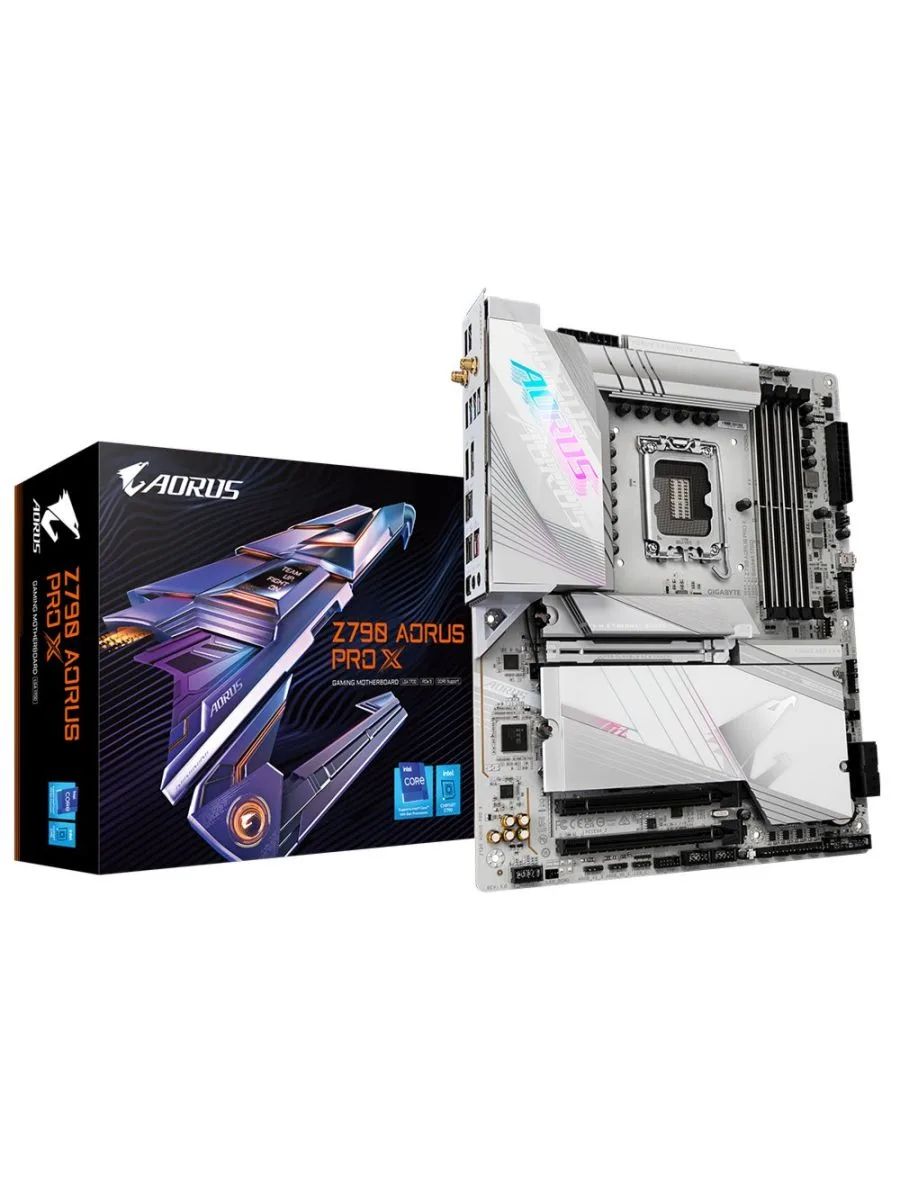

Gigabyte Z790 AORUS PRO X | Sockel LGA 1700 | Intel Z790 | 4xDDR5 | ATX | Mainboard

Warranty	2 jaar via Complies
SKU	Z790-AORUS-PRO-X
EAN	4719331857608
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR5-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Memory channels:	Dual-channel
ECC:	Yes
Non-ECC:	Yes
Supported memory clock speeds:	4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266 MHz
Supported memory clock speed (max):	8266 MHz
Maximum internal memory:	192 GB
Unbuffered memory:	Yes
Processor
Processor manufacturer:	Intel
Processor socket:	LGA 1700
Compatible processor series:	IntelÂ® CeleronÂ®, IntelÂ® Coreâ„¢ i3, IntelÂ® Coreâ„¢ i5, IntelÂ® Coreâ„¢ i7, IntelÂ® Coreâ„¢ i9, IntelÂ® PentiumÂ® Gold
Maximum number of SMP processors:	1
Supported processor sockets:	LGA 1700
Maximum internal memory supported by processor:	192 GB
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
USB 3.2 Gen 2x2 connectors:	1
Number of SATA III connectors:	4
Front panel audio connector:	Yes
Front panel connector:	Yes
ATX Power connector (24-pin):	Yes
Number of EATX power connectors:	2
CPU fan connector:	Yes
Number of chassis fan connectors:	6
EPS power connector (8-pin):	Yes
TPM connector:	Yes
Thunderbolt headers:	2
12V power connector:	Yes
RGB LED pin header:	Yes
Rear panel I/O ports
USB 2.0 ports quantity:	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:	1
USB 3.2 Gen 2x2 Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
HDMI ports quantity:	1
HDMI version:	2.0
DisplayPorts quantity:	1
DisplayPort version:	1.2
Headphone outputs:	1
Microphone in:	Yes
S/PDIF out port:	Yes
Digital audio optical out:	1
Thunderbolt ports quantity:	2
WiFi-AP antenna jack:	2
Network
Ethernet LAN:	Yes
Ethernet interface type:	2.5 Gigabit Ethernet
LAN controller:	Realtek RTL8126
Wi-Fi:	Yes
Top Wi-Fi standard:	Wi-Fi 7 (802.11be)
Wi-Fi standards:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth:	Yes
Bluetooth version:	5.3
Graphics
Parallel processing technology support:	Not supported
Maximum resolution:	4096 x 2304 pixels
HDCP:	Yes
DirectX version:	12.0
Discrete graphics support:	Yes
Expansion slots
PCI Express x16 (Gen 3.x) slots:	1
PCI Express x16 (Gen 4.x) slots:	1
PCI Express x16 (Gen 5.x) slots:	1
Number of M.2 (M) slots:	5
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	256 Mbit
ACPI version:	5.0
Clear CMOS jumper:	Yes
Clear CMOS button:	Yes
Desktop Management Interface (DMI) version:	2.7
System Management BIOS (SMBIOS) version:	2.7
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, SATA III
Number of HDDs supported:	4
Number of storage drives supported:	9
RAID support:	Yes
RAID levels:	0, 1, 5, 10
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	Intel
Motherboard chipset:	Intel Z790
Audio chip:	Realtek ALC1220-VB
Audio output channels:	7.1 channels
Product colour:	White
PC health monitoring:	Fan, Noise, Temperature, Voltage, Water cooling
Logistics data
Country of origin:	Taiwan
Quantity per shipping (inner) case:	1 pc(s)
Battery
Battery weight:	3 g
Lithium weight per battery:	0.07 g
Packaging data
Package width:	335 mm
Battery
Number of battery cells:	1
Packaging data
Package depth:	270 mm
Features
Windows operating systems supported:	Windows 11 x64
Packaging data
Package height:	80 mm
Battery
Battery technology:	Lithium-Manganese Dioxide (LiMnO2)
Packaging data
Package weight:	2.59 kg
Battery
Battery type:	CR2032
Weight & dimensions
Width:	305 mm
Depth:	244 mm
Height:	35 mm
Packaging content
Cables included:	SATA
Batteries included:	Yes
Antenna included:	Yes
Bundled software:	Norton Internet Security LAN bandwidth management software
Technical details
Warranty period:	3 year(s)

Productomschrijving

Introducing the GIGABYTE Z790 AORUS PRO X Motherboard offers an aesthetically all-white pleasing design. The stylish white motherboard supports the 13th Gen and the next-gen Intel Core processors, featuring an LGA 1700 socket. It delivers an advanced VRM design, efficient thermal management, PCIe 5.0 support, seamless DDR5 compatibility, and EZ-latch features for screwless installments. With its cutting-edge technology and user-friendly design, the AORUS PRO X Motherboard sets new standards for high-performance computing, ensuring optimal performance and easy maintenance for PC enthusiasts.
