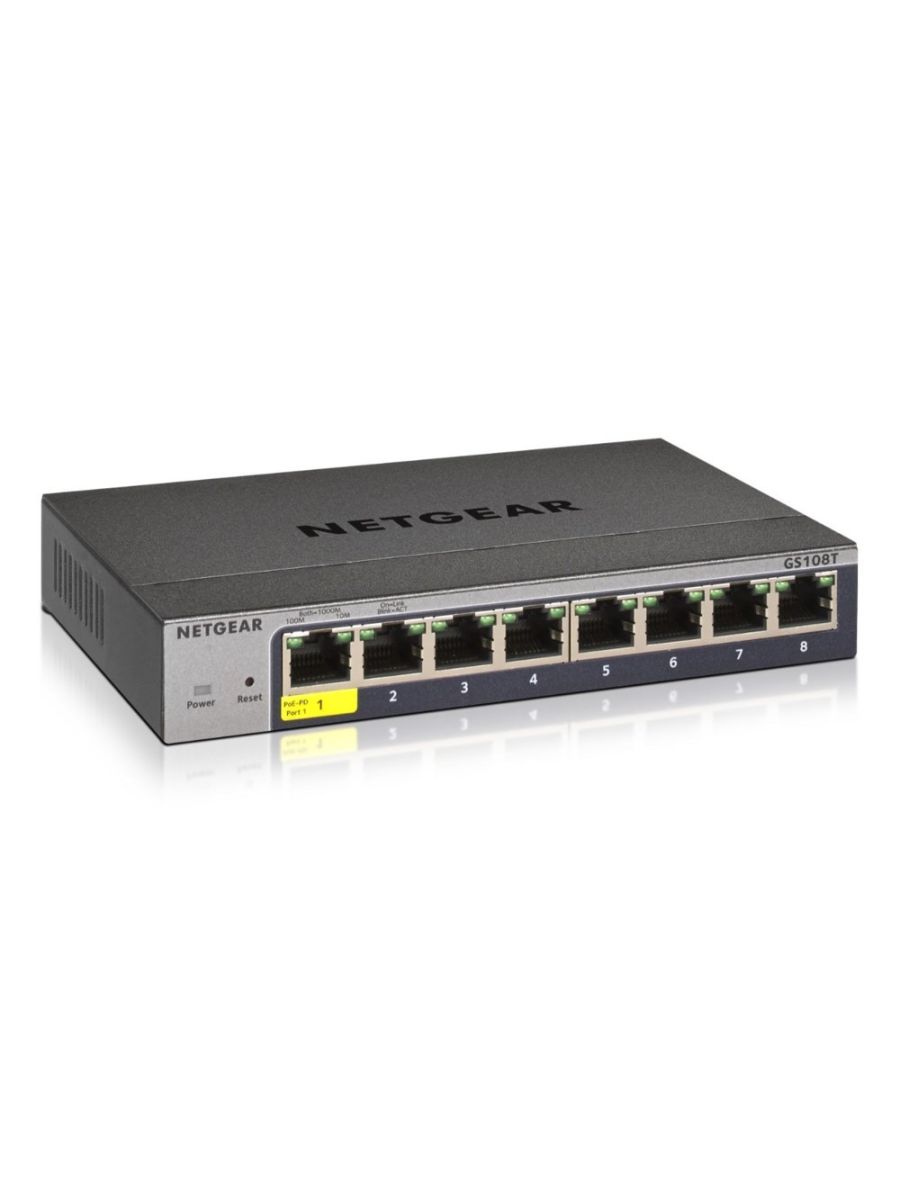

NETGEAR GS108Tv3 | Managed L2 Switch | 8 Ports | Gigabit Ethernet (10/100/1000 Mbps)

Warranty	1 jaar via Complies
SKU	GS108T-300PES
EAN	0606449138634
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Management features
Switch type:	Managed
Switch layer:	L2
Quality of Service (QoS) support:	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	8
Basic switching RJ-45 Ethernet ports type:	Gigabit Ethernet (10/100/1000)
Power connector:	DC-in jack
Network
Networking standards:	IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
Copper ethernet cabling technology:	10BASE-T, 100BASE-TX, 1000BASE-TX
Port mirroring:	Y
Full duplex:	Y
Flow control support:	Y
Link aggregation:	Y
Broadcast storm control:	Y
Rate limiting:	Y
Spanning tree protocol:	Y
MAC address auto-learning supported:	Y
Number of VLANs:	64
Multicast features
Multicast support:	Y
IPv4 multicast entries:	32
Number of multicast groups filtered:	256
Data transmission
MAC address table:	8000 entries
Switching capacity:	16 Gbit/s
Store-and-forward:	Y
Jumbo frames support:	Y
Packet buffer memory:	0.5 MB
Security
DHCP features:	DHCP client
Access Control List (ACL):	Y
Access Control List (ACL) IPv6 entries:	100
IGMP snooping:	Y
Security algorithms:	802.1x RADIUS
MAC address filtering:	Y
Protocols
Management protocols:	SNMP
Switching protocols:	SNMP
Data link protocols:	Ethernet, Fast Ethernet, Gigabit Ethernet
Supported network protocols:	HTTP, HTTPS
Design
Stackable:	N
Product colour:	Grey
LED indicators:	Activity, LAN, Link, PoE, Power, Speed
Certification:	CE, FCC, VCCI Class B, C-Tick
Performance
Processor frequency:	500 MHz
Memory type:	RAM
Internal memory:	128 MB
Flash memory:	32 MB
Firmware upgradeable:	Y
Mean time between failures (MTBF):	2388657 h
Power
Power supply included:	Y
AC input voltage:	100 - 240 V
AC input frequency:	50/60 Hz
DC input voltage:	54 V
Input current:	1.25 A
Power consumption (max):	5.5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE):	N
Operational conditions
Operating temperature (T-T):	0 - 40 Â°C
Storage temperature (T-T):	-20 - 70 Â°C
Operating relative humidity (H-H):	0 - 95%
Storage relative humidity (H-H):	0 - 95%
Operating altitude:	0 - 3000 m
Non-operating altitude:	0 - 3000 m
Heat dissipation:	18.66 BTU/h
Weight & dimensions
Width:	158 mm
Depth:	101 mm
Height:	27 mm
Weight:	43 kg
Packaging data
Manual:	Y
Package type:	Box
Package width:	226 mm
Package depth:	270 mm
Package height:	64 mm
Package weight:	780 g
Logistics data
Master (outer) case width:	214 mm
Master (outer) case length:	474 mm
Master (outer) case height:	312 mm
Harmonized System (HS) code:	85176990
Master (outer) case weight:	5.49 kg
Quantity per master (outer) case:	6 pc(s)

Productomschrijving

The NETGEAR GS108Tv3 8-port Gigabit Smart Managed Pro Switch with Cloud Management is fanless, allowing it to be mounted perfectly quietly on the desk or wall. The GS108Tv3 Smart Managed Pro Switch offers an easy-to-use, web browser-based management GUI with configurable L2 network features such as VLANs and QoS for wireless converged networking and mobility. Advanced features such as IPv4 Layer 2+ static routing, IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most sophisticated small business networks.
