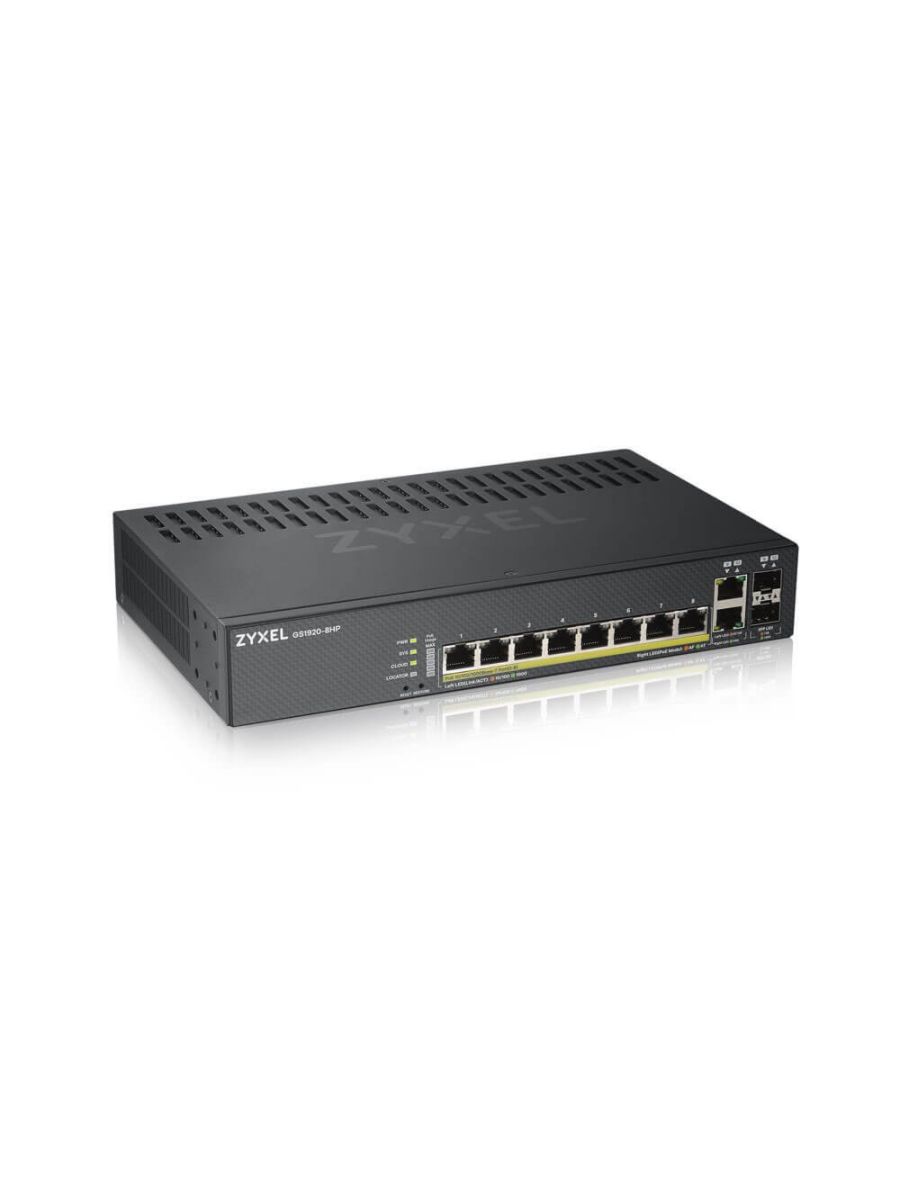

Zyxel GS1920-8HPV2 | Managed Switch | Gigabit Ethernet (10/100/1000) | Power over Ethernet (PoE) | Black

Warranty	2 jaar via Complies
SKU	GS1920-8HPV2-EU0101F
EAN	4718937602230
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Management features
Switch type:	Managed
Quality of Service (QoS) support:	Y
ARP inspection:	Y
System event log:	Y
MIB support:	RFC 1066, RFC 1213, RFC 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011.2012,2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819,2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	8
Basic switching RJ-45 Ethernet ports type:	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity:	2
Fiber optic connector:	SFP
Network
Networking standards:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support:	N
Copper ethernet cabling technology:	100BASE-TX, 1000BASE-T
Flow control support:	Y
Rate limiting:	Y
Spanning tree protocol:	Y
VLAN support:	Y
Virtual LAN features:	Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN, IP subnetâ€“based VLAN
Multicast features
Multicast support:	Y
Data transmission
MAC address table:	16000 entries
Switching capacity:	20 Gbit/s
Forwarding rate:	15 Mpps
Packet buffer memory:	1.5 MB
Optical fiber
Fiber ethernet cabling technology:	1000BASE-X
Security
DHCP features:	DHCP snooping, DHCP relay, DHCPv6 relay, DHCP client
Access Control List (ACL):	Y
IGMP snooping:	Y
Security algorithms:	802.1x RADIUS, SNMP, SNMPv3
MAC address filtering:	Y
IP-MAC-Port binding:	Y
Authentication:	Guest VLAN, Port-based authentication
Password protection:	Y
Authentication type:	IEEE 802.1x, RADIUS
CPU defense:	Y
Queue scheduling algorithms:	SPQ, WFQ, Weighted Round Robin (WRR)
Design
Rack mounting:	N
Product colour:	Black
LED indicators:	Y
Wall mountable:	Y
Safety:	LVD, BSMI
Electromagnetic compatibility:	FCC 15 A, CE A, BSMI EMC
Certification:	RoHS
Performance
Internal memory:	256 MB
Flash memory:	32 MB
Mean time between failures (MTBF):	513985 h
Power
AC input voltage:	100 - 240 V
AC input frequency:	50 - 60 Hz
Power consumption (max):	161.8 W
Power over Ethernet (PoE)
Power over Ethernet (PoE):	Y
Power over Ethernet (PoE) ports quantity:	8
Total Power over Ethernet (PoE) budget:	130 W
Operational conditions
Operating temperature (T-T):	0 - 50 Â°C
Storage temperature (T-T):	-40 - 70 Â°C
Operating relative humidity (H-H):	10 - 95%
Storage relative humidity (H-H):	10 - 95%
Heat dissipation:	551.74 BTU/h
Weight & dimensions
Width:	267 mm
Depth:	162 mm
Height:	44 mm
Weight:	1.9 kg
Packaging data
Cables included:	AC
Package width:	375 mm
Package depth:	235 mm
Package height:	61 mm
Package weight:	2.73 kg
Logistics data
Harmonized System (HS) code:	85176990

Productomschrijving

A powerful and reliable network switch designed to meet the needs of small to medium-sized businesses. Offering eight Gigabit Ethernet ports with Power over Ethernet (PoE) support, this switch provides the flexibility and performance needed for most network applications.
