ASUS ROG LOKI SFX-L | 850 Watt Platinum ATX 3.0 PSU | Modular | Power Supply | PSU

Warranty	10 jaar via Complies
SKU	90YE00N3-B0NA00
EAN	4711081722557
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Power
Total power:	850 W
AC input voltage:	100 - 240 V
Combined power (+3.3V):	110 W
Combined power (+12V):	850 W
Combined power (+5V):	110 W
Combined power (-12V):	9.6 W
Combined power (+5Vsb):	12.5 W
Max output current (+3.3V):	20 A
Max output current (+12V):	70.8 A
Max output current (+5V):	20 A
Max output current (-12V):	0.8 A
Max output current (+5Vsb):	2.5 A
Ports & interfaces
Motherboard power connector:	24-pin ATX
Number of SATA power connectors:	6
Peripheral (Molex) power connectors (4-pin):	4
PCI Express power connectors (8-pin):	3
PCI Express power connectors (16-pin):	1
CPU power connector (4+4 pin):	Y
Performance
Purpose:	PC
Power supply unit (PSU) form factor:	SFX
80 PLUS certification:	80 PLUS Platinum
Supported motherboard form factors:	ATX
Silent mode:	Y
Certification:	OPP/OVP/UVP/SCP/OCP/OTP
Design
Product colour:	Black, Silver
Fan diameter:	12 cm
Number of fans:	1 fan(s)
Illumination:	Y
Technical details
Sustainability certificates:	RoHS
Weight & dimensions
Width:	125 mm
Depth:	125 mm
Height:	63.5 mm
Weight:	1.81 kg
Packaging data
Package width:	285 mm
Package depth:	190 mm
Package height:	100 mm
Package weight:	2.5 kg
Package type:	Box

Productomschrijving

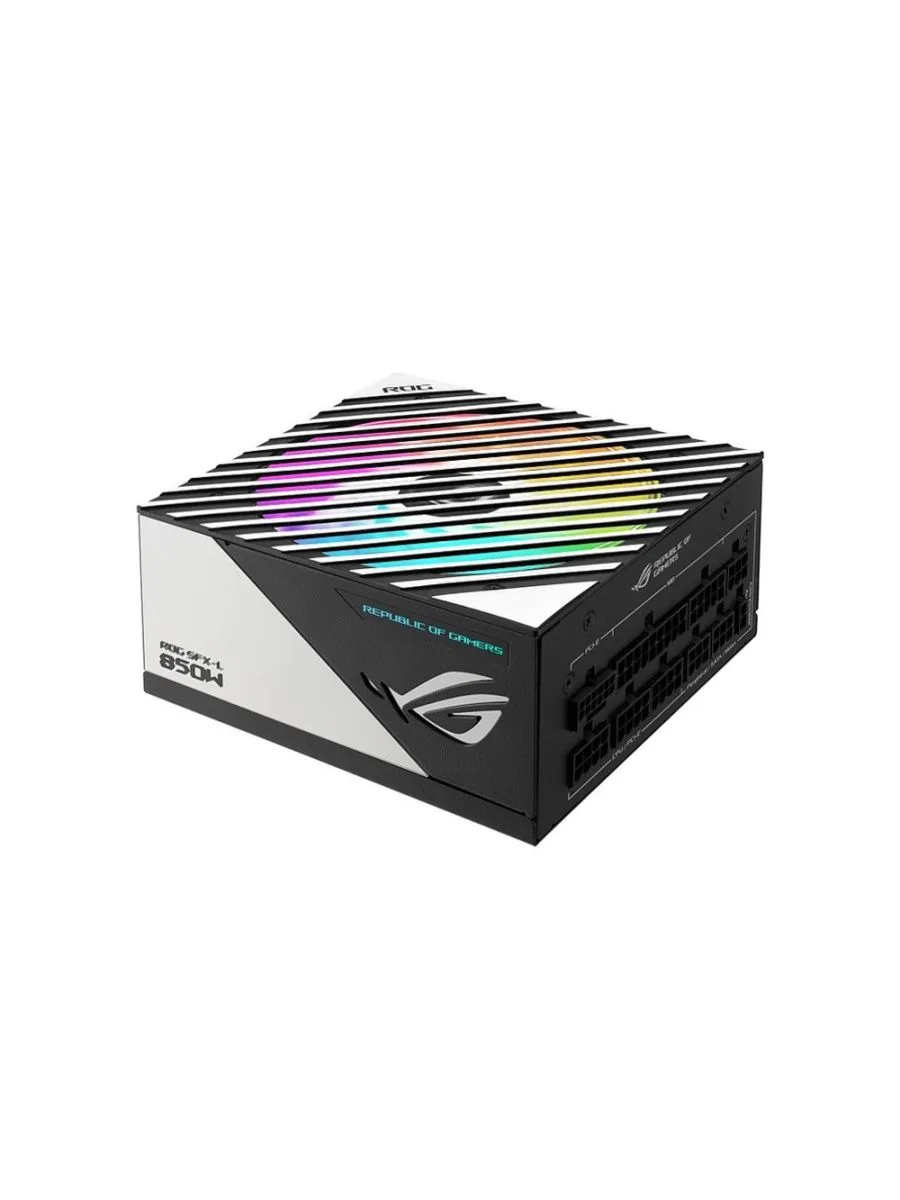

The ASUS ROG Loki SFX-L 850W Platinum power supply is a powerful and reliable power solution designed specifically for high-end gaming and system building. With an SFX-L size and an output of 850W, this power supply offers the perfect combination of compactness and performance for small form factor systems.

More…

ASUS ROG LOKI SFX-L | 850 Watt Platinum ATX 3.0 PSU | Modular | Power Supply | PSU

Productomschrijving
