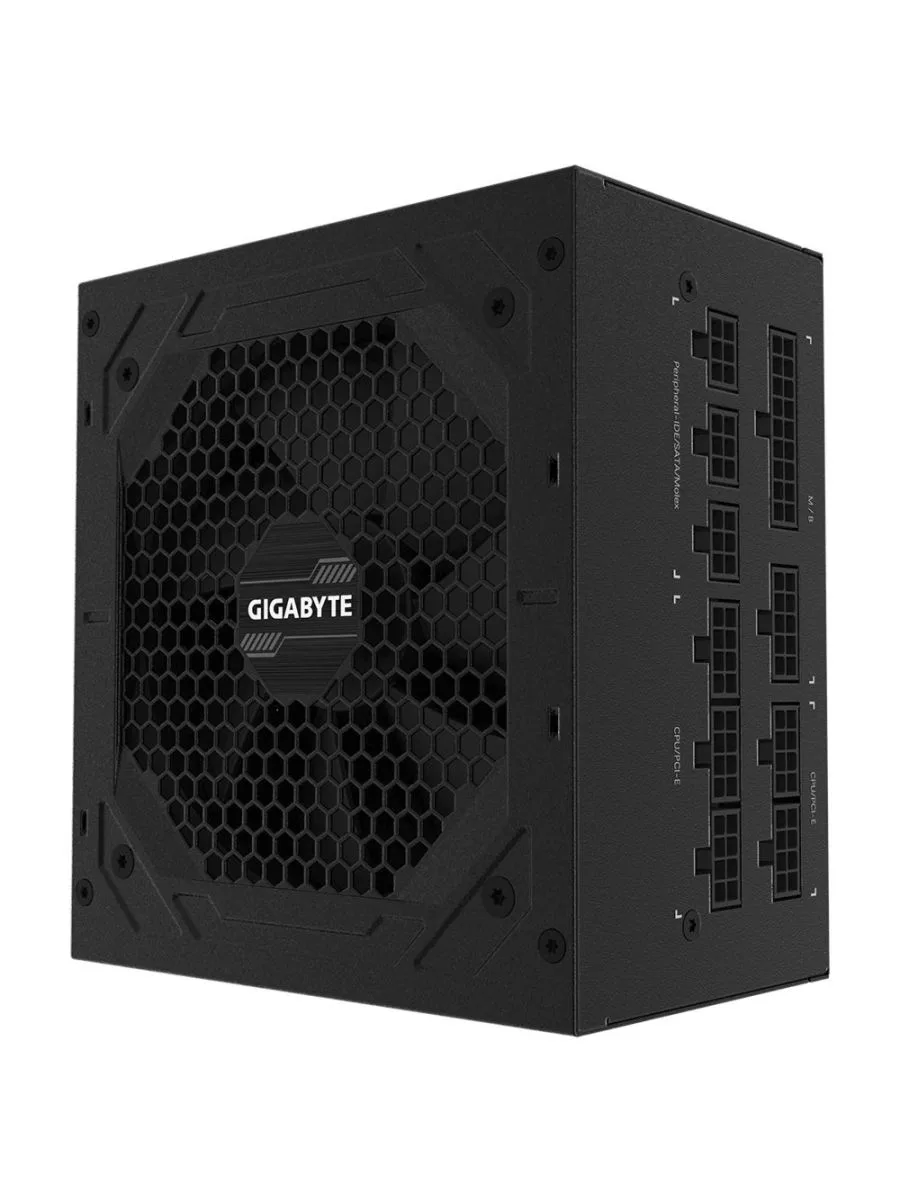

Gigabyte P850GM | 850 Watt Gold ATX PSU | Modular | Power Supply | PSU

Warranty	2 jaar via Complies
SKU	GP-P850GM
EAN	4719331551865
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Power
Total power:	850 W
AC input voltage:	100 - 240 V
AC input frequency:	50/60 Hz
Maximum input current (@110V):	12 A
Maximum input current (@220V):	6 A
Power factor:	0.9
Power Factor Correction (PFC) type:	Active
Combined power (+3.3V):	120 W
Combined power (+12V):	846 W
Combined power (+5V):	120 W
Combined power (-12V):	3.6 W
Combined power (+5Vsb):	15 W
Max output current (+3.3V):	20 A
Max output current (+12V):	70.5 A
Max output current (+5V):	20 A
Max output current (-12V):	0.3 A
Max output current (+5Vsb):	3 A
Hold time:	16 ms
Efficiency:	90%
Power protection features:	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector:	20+4 pin ATX
Motherboard power cable length:	61 cm
Number of SATA power connectors:	8
SATA power cable length:	600,750,900 mm
Peripheral (Molex) power connectors (4-pin):	3
PCI Express power connectors (6+2 pin):	4
PCI Express power cable length:	75 cm
CPU power connector (4+4 pin):	Y
CPU power cable length:	60 cm
ATX power connector (20+4 pin):	Y
Floppy drive power connector:	2
Floppy disk drive connector:	Y
Floppy disk drive cable length:	89 cm
Cabling type:	Modular
Performance
Purpose:	PC
Power supply unit (PSU) form factor:	ATX
80 PLUS certification:	80 PLUS Gold
ATX version:	2.31
Mean time between failures (MTBF):	100000 h
Design
Product colour:	Black
Cooling type:	Active
Fan diameter:	12 cm
Number of fans:	1 fan(s)
Fan location:	Top
On/off switch:	Y
Weight & dimensions
Width:	150 mm
Depth:	140 mm
Height:	86 mm
Packaging data
Package type:	Box
Logistics data
Harmonized System (HS) code:	84733020

Productomschrijving

The Gigabyte P850GM power supply unit is a powerful and reliable power supply perfect for gamers and PC enthusiasts looking for top performance.

The power supply has a 20+4 pin ATX connector and is designed to be compatible with most ATX motherboards.

the P850GM has a stylish black design to match any case and can be customised with an RGB-lit fan (sold separately) for a personal touch.
