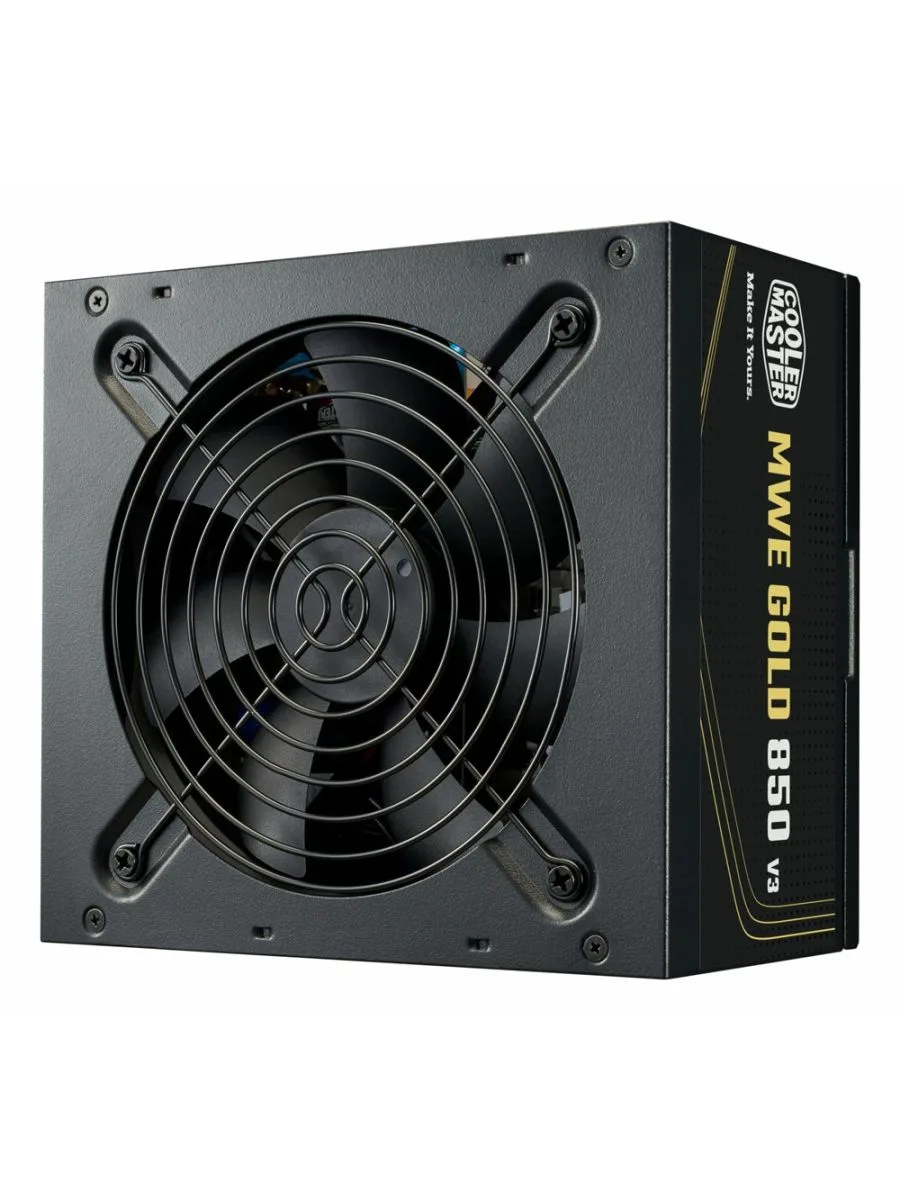

Cooler Master MWE Gold 850 V3 | 850 Watt Gold ATX 3.1 PSU | Modular | Power Supply | PSU

Warranty	2 jaar via Complies
SKU	MPE-8506-ACAG-BEU
EAN	4719512153437
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Power
Total power:	850 W
AC input voltage:	100 - 240 V
AC input frequency:	50/60 Hz
Input current:	6 - 10 A
Power Factor Correction (PFC) type:	Active
Combined power (+3.3V):	100 W
Combined power (+12V):	849.6 W
Combined power (+5V):	100 W
Combined power (-12V):	3.6 W
Combined power (+5Vsb):	15 W
Max output current (+3.3V):	20 A
Max output current (+12V):	70.8 A
Max output current (+5V):	20 A
Max output current (-12V):	0.3 A
Max output current (+5Vsb):	3 A
Hold time:	16 ms
Efficiency:	90%
Power Good signal delay range:	100 - 150 ms
Power protection features:	Over current, Over power, Over total voltage, Over voltage, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector:	24-pin ATX
Motherboard power cable length:	55 cm
Number of SATA power connectors:	6
SATA power cable length:	400,550,700 mm
Peripheral (Molex) power connectors (4-pin):	3
Peripheral (Molex) power cable length:	400,550,700 mm
EPS power connector (8-pin):	Yes
EPS power connector (4+4 pin):	Yes
PCI Express power connectors (6+2 pin):	4
ATX Power connector (24-pin):	Yes
Number of EPS connectors:	2
Cabling type:	Non-Modular
Performance
Purpose:	PC
Power supply unit (PSU) form factor:	ATX
80 PLUS certification:	80 PLUS Gold
ATX version:	3.1
Bearing technology:	HDB
Mean time between failures (MTBF):	100000 h
Design
Product colour:	Black
Cooling type:	Active
Fan diameter:	12 cm
Number of fans:	1 fan(s)
Fan location:	Top
On/off switch:	Yes
Certificates
Compliance certificates:	BIS, BSMI, CCC, CE, EAC, Federal Communications Commission (FCC), RCM, TÃœV mark, UKCA, cTUVus
Technical details
Sustainability certificates:	ErP
Operational conditions
Operating temperature (T-T):	0 - 40 Â°C
Weight & dimensions
Width:	140 mm
Depth:	150 mm
Height:	86 mm
Weight:	1.8 kg
Packaging data
Package width:	190 mm
Package depth:	110 mm
Package height:	260 mm
Package weight:	2.21 kg
Package type:	Box
Case or master carton dimensions (W x D x H):	275 x 215 x 570 mm

Productomschrijving

Introducing the MWE Gold V3, the evolutionary next step in Cooler Master power and the ATX 3.1 upgrade to our G Gold PSU. With features such as 80 Plus Gold efficiency, a DC-to-DC + LLC circuit design, and a quiet HDB fan cooling, the V3 provides valuable performance in multiple dimensions.

Several changes and additions improve the overall user experience. Together, these design choices deliver an advanced PSU that is highly efficient and reliable. With an embossed cable, exceptional temperature resilience and a 5-year warranty, the MWE Gold V3 will evolve your machine.
