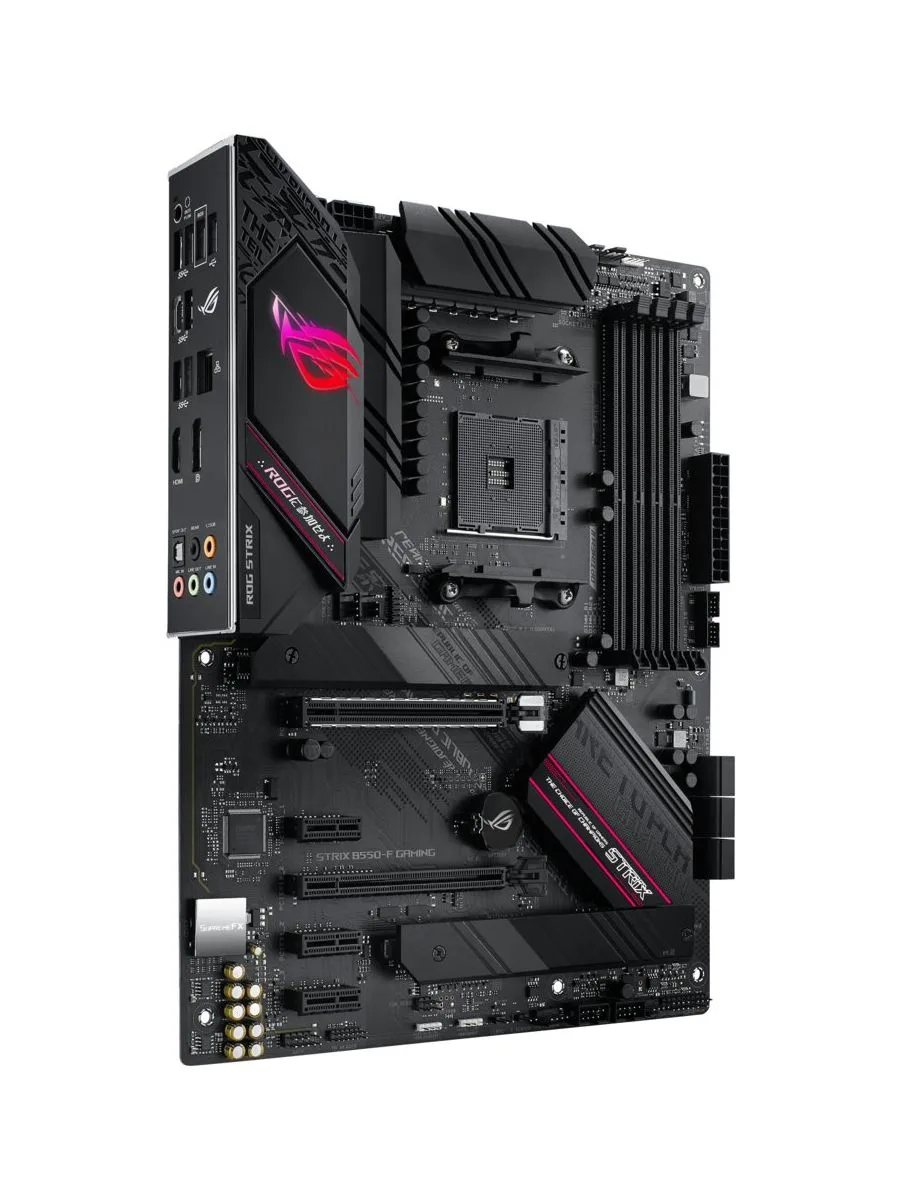

ASUS ROG STRIX B550-F GAMING | Socket AM4 | AMD B550 | 4× DDR4 | ATX | Motherboard

Warranty	3 jaren via fabrikant
SKU	90MB14S0-M0EAY0
EAN	4718017749688
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR4-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Supported memory clock speeds:	2133,2400,2666,2800,3000,3200,3466,3600,3866,4000,4133,4400,4600 MHz
Maximum internal memory:	128 GB
Processor
Processor manufacturer:	AMD
Processor socket:	Socket AM4
Compatible processor series:	AMD Ryzen 3 3rd Gen, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9
Maximum number of SMP processors:	1
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors:	1
Number of SATA III connectors:	6
Number of EATX power connectors:	1
CPU fan connector:	Y
Number of chassis fan connectors:	3
EPS power connector (8-pin):	Y
Thunderbolt headers:	1
12V power connector:	Y
Rear panel I/O ports
USB 2.0 ports quantity:	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
HDMI ports quantity:	1
HDMI version:	2.1
DisplayPorts quantity:	1
DisplayPort version:	1.2
Headphone outputs:	1
Microphone in:	Y
S/PDIF out port:	Y
Network
Ethernet LAN:	Y
Ethernet interface type:	2.5 Gigabit Ethernet
LAN controller:	Intel I225-V
Wake-on-LAN ready:	Y
Wi-Fi:	N
Bluetooth:	Y
Bluetooth version:	5.0
Graphics
Parallel processing technology support:	2-Way CrossFireX
Expansion slots
PCI Express x1 (Gen 3.x) slots:	3
PCI Express x16 (Gen 3.x) slots:	1
PCI Express x16 (Gen 4.x) slots:	1
PCI Express slots version:	3.0,4.0
Number of M.2 (M) slots:	2
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	256000 Mbit
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2,SATA III
Number of HDDs supported:	6
RAID levels:	0,1,10
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	AMD
Motherboard chipset:	AMD B550
Audio output channels:	7.1 channels
PC health monitoring:	CPU, Fan
Cooling type:	Active
Power source type:	ATX
Windows operating systems supported:	Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64
Weight & dimensions
Width:	305 mm
Depth:	244 mm
Packaging content
Cables included:	SATA
Manual:	Y
Drivers included:	Y

Productomschrijving

This motherboard with Socket AM4 is compatible with a range of AMD processors, including Ryzen 3rd Gen and Ryzen 7 3rd Gen, for unparalleled gaming performance. With support for DDR4-SDRAM and a maximum internal memory of 128 GB via DIMM slots, you're ready for demanding tasks and multitasking.

You have various storage options thanks to M.2 and SATA III interfaces, allowing you to use both HDDs and SSDs. With support for 2-Way CrossFireX, you can achieve powerful graphics performance for demanding games.

This motherboard is equipped with 2.5 Gigabit Ethernet and the Intel I225-V LAN controller to ensure lightning-fast network performance. The ASUS ROG STRIX B550-F GAMING is designed for gamers and PC enthusiasts aiming for top performance and reliability for their system.
