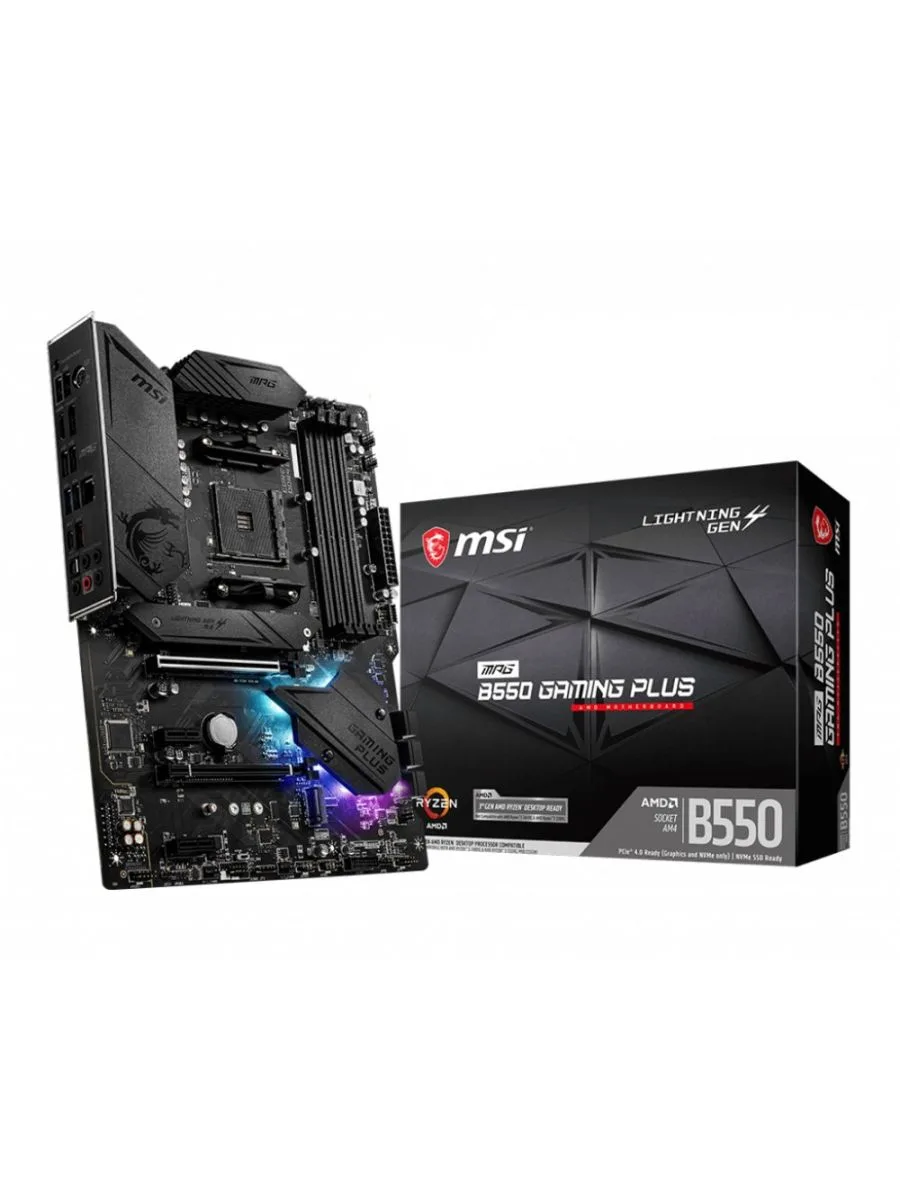

MSI MPG B550 Gaming Plus | Socket AM4 | AMD B550 | 4xDDR4 | ATX | Motherboard

Warranty	1 jaar via Complies
SKU	7C56-003R
EAN	4719072731885
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR4-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Memory channels:	Dual-channel
ECC:	Y
Non-ECC:	Y
Supported memory clock speeds:	1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400 MHz
Maximum internal memory:	128 GB
Unbuffered memory:	Y
Processor
Processor manufacturer:	AMD
Processor socket:	Socket AM4
Compatible processor series:	3rd Generation AMD Ryzenâ„¢ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzenâ„¢ 7, 3rd Generation AMD Ryzenâ„¢ 9
Maximum number of SMP processors:	1
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
Number of SATA III connectors:	6
Front panel audio connector:	Y
ATX Power connector (24-pin):	Y
CPU fan connector:	Y
Number of chassis fan connectors:	6
Chassis intrusion connector:	Y
TPM connector:	Y
12V power connector:	Y
RGB LED pin header:	Y
Rear panel I/O ports
USB 2.0 ports quantity:	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
PS/2 ports quantity:	1
HDMI ports quantity:	1
DisplayPorts quantity:	1
S/PDIF out port:	Y
Digital audio optical out:	1
Network
Ethernet LAN:	Y
Ethernet interface type:	Gigabit Ethernet
LAN controller:	Realtek 8111H
Wi-Fi:	N
Graphics
Maximum graphics adapter memory:	16000 MB
Parallel processing technology support:	2-Way CrossFireX
Maximum resolution:	4096 x 2160 pixels
Expansion slots
PCI Express x1 (Gen 3.x) slots:	2
PCI Express x16 (Gen 3.x) slots:	1
PCI Express x16 (Gen 4.x) slots:	1
Number of M.2 (M) slots:	2
BIOS
BIOS type:	UEFI AMI
Clear CMOS jumper:	Y
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	SATA III
RAID levels:	0,1,10
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	AMD
Motherboard chipset:	AMD B550
Audio chip:	Realtek ALC892
Audio output channels:	7.1 channels
PC health monitoring:	CPU, Fan, Temperature
Number of mounting holes:	9
Weight & dimensions
Width:	305 mm
Depth:	244 mm
Packaging content
Cables included:	SATA
Drivers included:	Y

Productomschrijving

Experience the MSI MPG B550 Gaming Plus motherboard, designed for AMD processors on the Socket AM4 platform. Ideal for gaming enthusiasts and content creators, it supports 3rd Generation AMD Ryzen processors, delivering exceptional performance and reliability.

Equipped with DDR4 memory slots supporting up to 128 GB of RAM, this motherboard ensures smooth multitasking and seamless gaming experiences. It features SATA III interfaces for both HDDs and SSDs, offering ample storage flexibility and high-speed data transfer rates.

Supporting 2-Way CrossFireX for parallel processing and capable of handling up to 16000 MB of graphics memory, it provides robust support for gaming and multimedia applications. The board also features Gigabit Ethernet with a Realtek 8111H LAN controller for reliable network connectivity.

Ideal for building a high-performance gaming PC, the MSI MPG B550 Gaming Plus combines powerful features with advanced technology to meet the demands of modern gaming and computing tasks.
