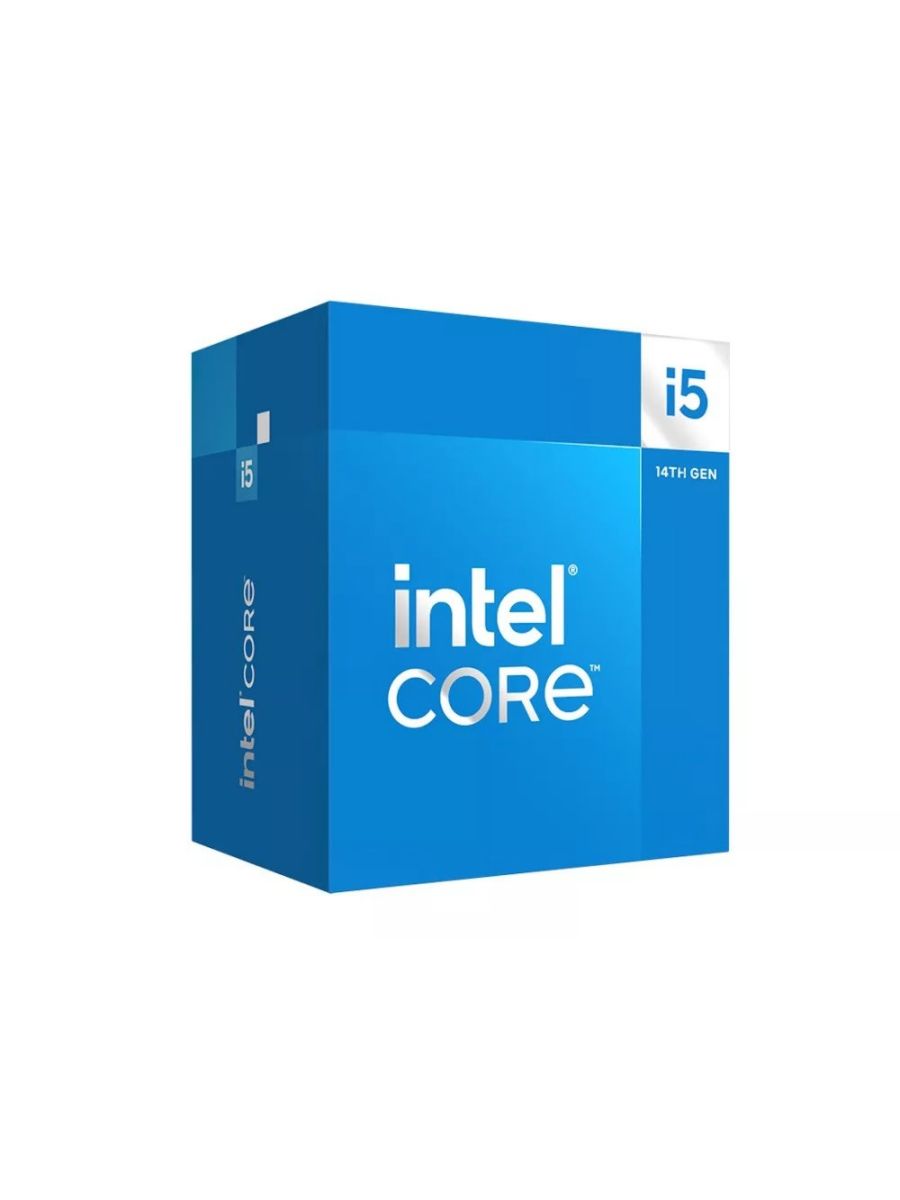

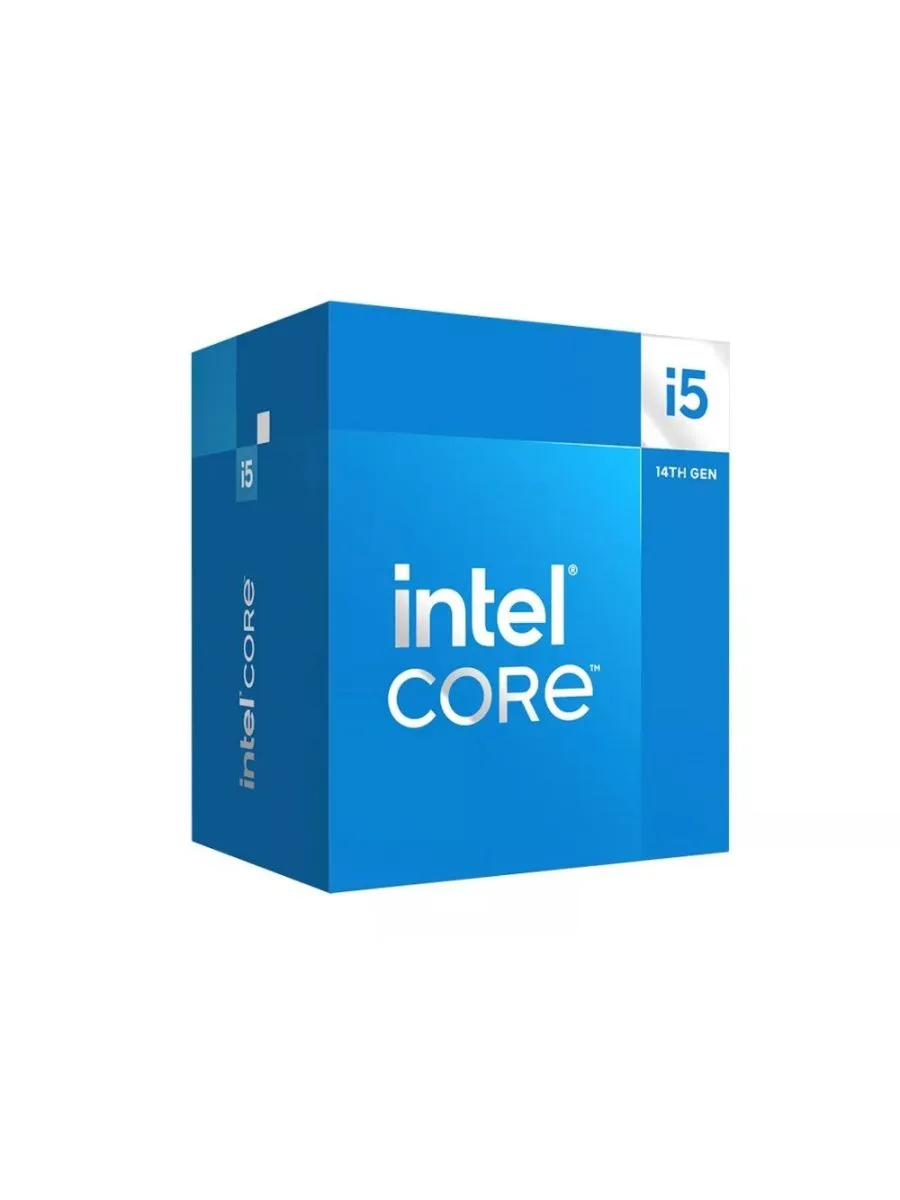

Intel Core i5-14500 | 14 Core | 2.6GHz (5GHz Turbo) | LGA 1700 | Processor | CPU
Processor
Processor manufacturer:
Intel
Processor family:
Intel® Core⢠i5
Processor generation:
Intel Core i5-14xxx
Processor model:
i5-14500
Processor cores:
14
Processor socket:
LGA 1700
Box:
Yes
Cooler included:
Yes
Processor threads:
20
Processor operating modes:
64-bit
Performance cores:
6
Efficient cores:
8
Processor boost frequency:
5 GHz
Performance-core boost frequency:
5 GHz
Performance-core base frequency:
2.6 GHz
Efficient-core boost frequency:
3.7 GHz
Efficient-core base frequency:
1.9 GHz
Processor cache:
24 MB
Processor cache type:
Smart Cache
Processor base power:
65 W
Maximum turbo power:
154 W
Maximum number of DMI lanes:
8
Memory bandwidth supported by processor (max):
76.8 GB/s
Processor codename:
Raptor Lake
Processor ARK ID:
236784
Memory
Maximum internal memory supported by processor:
192 GB
Memory types supported by processor:
DDR4-SDRAM, DDR5-SDRAM
Memory channels:
Dual-channel
ECC:
Yes
Memory bandwidth (max):
76.8 GB/s
Graphics
On-board graphics adapter:
Yes
Discrete graphics adapter:
No
On-board graphics adapter model:
Intel UHD Graphics 770
On-board graphics adapter outputs supported:
Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1
On-board graphics adapter dynamic frequency (max):
1550 MHz
Number of displays supported (on-board graphics):
4
On-board graphics adapter DirectX version:
12.0
On-board graphics adapter OpenGL version:
4.5
On-board graphics adapter maximum resolution (DisplayPort):
7680 x 4320 pixels
On-board graphics adapter maximum resolution (eDP - Integrated Flat Panel):
5120 x 3200 pixels
On-board graphics adapter maximum resolution (HDMI):
4096 x 2160 pixels
On-board graphics adapter refresh rate at maximum resolution (DisplayPort):
60 Hz
On-board graphics adapter refresh rate at maximum resolution (eDP - Integrated Flat Panel):
120 Hz
On-board graphics adapter refresh rate at maximum resolution (HDMI):
60 Hz
On-board graphics adapter ID:
0x4680
Discrete graphics adapter model:
Not available
Number of execution units:
32
Multi-Format Codec Engines:
2
Features
Execute Disable Bit:
Yes
Idle States:
Yes
Thermal Monitoring Technologies:
Yes
Market segment:
Desktop
Use conditions:
Workstation, PC/Client/Tablet
Maximum number of PCI Express lanes:
20
PCI Express slots version:
4.0, 5.0
PCI Express configurations:
1x16+1x4, 2x8+1x4
Supported instruction sets:
AVX 2.0, SSE4.1, SSE4.2
Scalability:
1S
CPU configuration (max):
1
Embedded options available:
Yes
Direct Media Interface (DMI) Revision:
4.0
Export Control Classification Number (ECCN):
5A992C
Commodity Classification Automated Tracking System (CCATS):
740.17B1
Processor special features
Intel® Hyper Threading Technology (Intel® HT Technology):
Yes
Intel® Turbo Boost Technology:
2.0
Intel® Quick Sync Video Technology:
Yes
Intel® Clear Video HD Technology (Intel® CVT HD):
Yes
Intel® AES New Instructions (Intel® AES-NI):
Yes
Enhanced Intel SpeedStep Technology:
Yes
Intel® Speed Shift Technology:
Yes
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0:
Yes
Intel® Control-flow Enforcement Technology (CET):
Yes
Intel® Thread Director:
Yes
Intel VT-x with Extended Page Tables (EPT):
Yes
Intel® Secure Key:
Yes
Intel® OS Guard:
Yes
Intel 64:
Yes
Intel Virtualization Technology (VT-x):
Yes
Intel Virtualization Technology for Directed I/O (VT-d):
Yes
Intel® Boot Guard:
Yes
Intel® Deep Learning Boost (Intel® DL Boost):
Yes
Intel® Volume Management Device (VMD):
Yes
Mode-based Execute Control (MBE):
Yes
Intel® Standard Manageability (ISM):
Yes
Operational conditions
Tjunction:
100 °C
Technical details
OpenCL version:
3.0
Logistics data
Harmonized System (HS) code:
8542310001
Technical details
Launch date:
Q1'24
Status:
Launched
Weight & dimensions
Processor package size:
45 x 37.5 mm
Other features
L2 cache:
11776 KB
Maximum internal memory:
192 GB
Graphics output:
eDP 1.4b, DP 1.4a, HDMI 2.1
