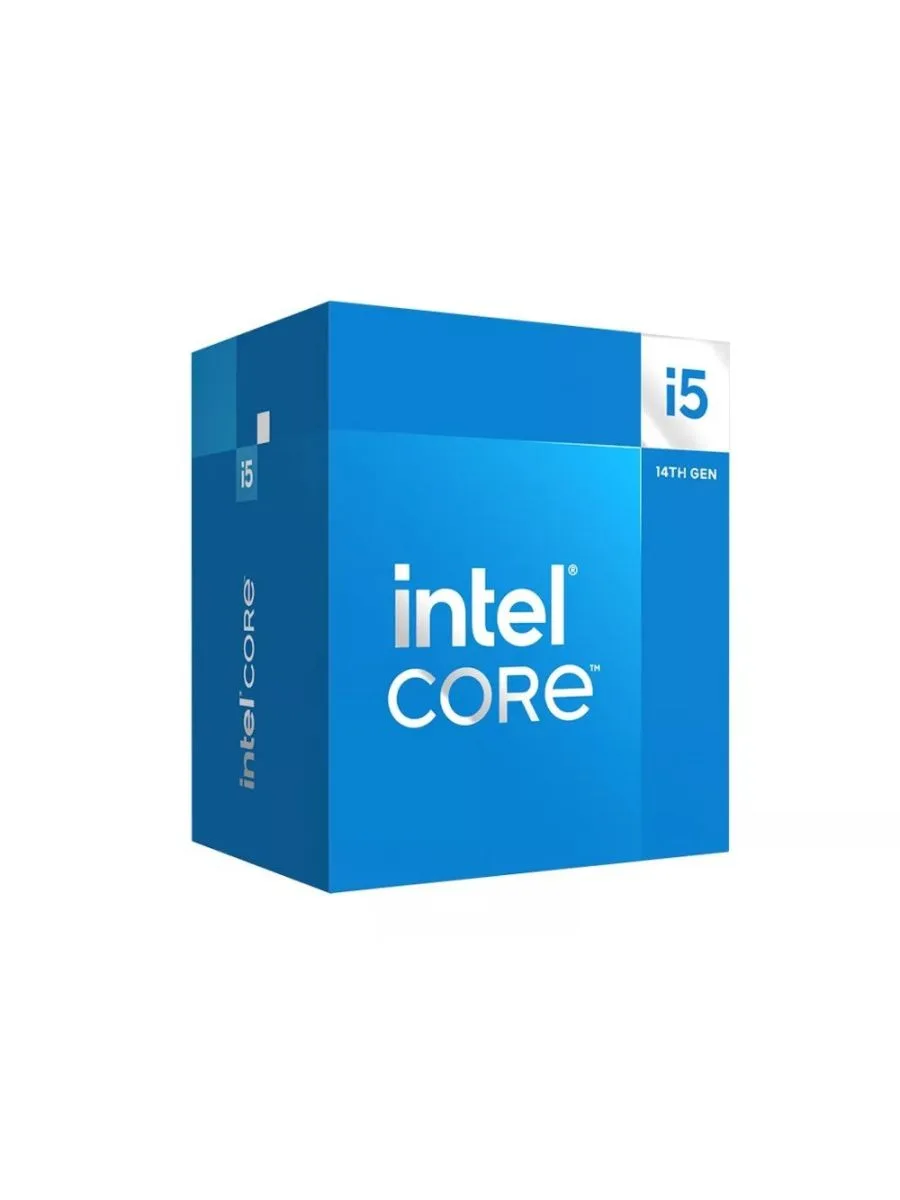

Intel Core i5-14400 | 10 Core | 2.5GHz (4.7GHz Turbo) | LGA 1700 | Processor | CPU

Warranty	2 jaar via Complies
SKU	BX8071514400
EAN	5032037279130
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Processor
Processor manufacturer:	Intel
Processor family:	IntelÂ® Coreâ„¢ i5
Processor generation:	Intel Core i5-14xxx
Processor model:	i5-14400
Processor cores:	10
Processor socket:	LGA 1700
Box:	Yes
Cooler included:	Yes
Processor threads:	16
Processor operating modes:	64-bit
Performance cores:	6
Efficient cores:	4
Processor boost frequency:	4.7 GHz
Performance-core boost frequency:	4.7 GHz
Performance-core base frequency:	2.5 GHz
Efficient-core boost frequency:	3.5 GHz
Efficient-core base frequency:	1.8 GHz
Processor cache:	20 MB
Processor cache type:	Smart Cache
Processor base power:	65 W
Maximum turbo power:	148 W
Maximum number of DMI lanes:	8
Memory bandwidth supported by processor (max):	76.8 GB/s
Processor codename:	Raptor Lake
Processor ARK ID:	236788
Memory
Maximum internal memory supported by processor:	192 GB
Memory types supported by processor:	DDR4-SDRAM, DDR5-SDRAM
Memory channels:	Dual-channel
Memory bandwidth (max):	76.8 GB/s
Graphics
On-board graphics adapter:	Yes
Discrete graphics adapter:	No
On-board graphics adapter model:	Intel UHD Graphics 730
On-board graphics adapter outputs supported:	Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1
On-board graphics adapter dynamic frequency (max):	1550 MHz
Number of displays supported (on-board graphics):	4
On-board graphics adapter DirectX version:	12.0
On-board graphics adapter OpenGL version:	4.5
On-board graphics adapter maximum resolution (DisplayPort):	7680 x 4320 pixels
On-board graphics adapter maximum resolution (eDP - Integrated Flat Panel):	5120 x 3200 pixels
On-board graphics adapter maximum resolution (HDMI):	4096 x 2160 pixels
On-board graphics adapter refresh rate at maximum resolution (DisplayPort):	60 Hz
On-board graphics adapter refresh rate at maximum resolution (eDP - Integrated Flat Panel):	120 Hz
On-board graphics adapter refresh rate at maximum resolution (HDMI):	60 Hz
On-board graphics adapter ID:	0x4682/0xA782
Discrete graphics adapter model:	Not available
Number of execution units:	24
Multi-Format Codec Engines:	1
Features
Execute Disable Bit:	Yes
Idle States:	Yes
Thermal Monitoring Technologies:	Yes
Market segment:	Desktop
Use conditions:	PC/Client/Tablet
Maximum number of PCI Express lanes:	20
PCI Express slots version:	4.0, 5.0
PCI Express configurations:	1x16+1x4, 2x8+1x4
Supported instruction sets:	AVX 2.0, SSE4.1, SSE4.2
Scalability:	1S
CPU configuration (max):	1
Embedded options available:	Yes
Direct Media Interface (DMI) Revision:	4.0
Export Control Classification Number (ECCN):	5A992C
Commodity Classification Automated Tracking System (CCATS):	740.17B1
Processor special features
IntelÂ® Hyper Threading Technology (IntelÂ® HT Technology):	Yes
IntelÂ® Turbo Boost Technology:	2.0
IntelÂ® Quick Sync Video Technology:	Yes
IntelÂ® Clear Video HD Technology (IntelÂ® CVT HD):	Yes
IntelÂ® AES New Instructions (IntelÂ® AES-NI):	Yes
Enhanced Intel SpeedStep Technology:	Yes
IntelÂ® Speed Shift Technology:	Yes
IntelÂ® Gaussian & Neural Accelerator (IntelÂ® GNA) 3.0:	Yes
IntelÂ® Control-flow Enforcement Technology (CET):	Yes
IntelÂ® Thread Director:	Yes
Intel VT-x with Extended Page Tables (EPT):	Yes
IntelÂ® Secure Key:	Yes
IntelÂ® OS Guard:	Yes
Intel 64:	Yes
Intel Virtualization Technology (VT-x):	Yes
Intel Virtualization Technology for Directed I/O (VT-d):	Yes
IntelÂ® Boot Guard:	Yes
IntelÂ® Deep Learning Boost (IntelÂ® DL Boost):	Yes
IntelÂ® Volume Management Device (VMD):	Yes
Mode-based Execute Control (MBE):	Yes
IntelÂ® Standard Manageability (ISM):	Yes
Operational conditions
Tjunction:	100 Â°C
Technical details
OpenCL version:	3.0
Logistics data
Harmonized System (HS) code:	8542310001
Technical details
Launch date:	Q1'24
Status:	Launched
Weight & dimensions
Processor package size:	45 x 37.5 mm
Other features
L2 cache:	9728 KB
Maximum internal memory:	192 GB
Graphics output:	eDP 1.4b, DP 1.4a, HDMI 2.1

Productomschrijving

Meet the Intel Core i5-14400, a powerful addition to the Intel® Core™ i5 processor family. With its LGA 1700 processor socket, manufactured by Intel, and support for dual-channel memory, this processor offers an impressive maximum internal memory capacity of 192 GB.

The Intel Core i5-14400 is versatile with support for both DDR4-SDRAM and DDR5-SDRAM memory types, making it ideal for various applications. The on-board Intel UHD Graphics 730 delivers a visually immersive experience with supported outputs such as Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, and HDMI 2.1, with a maximum dynamic frequency of 1550 MHz.
