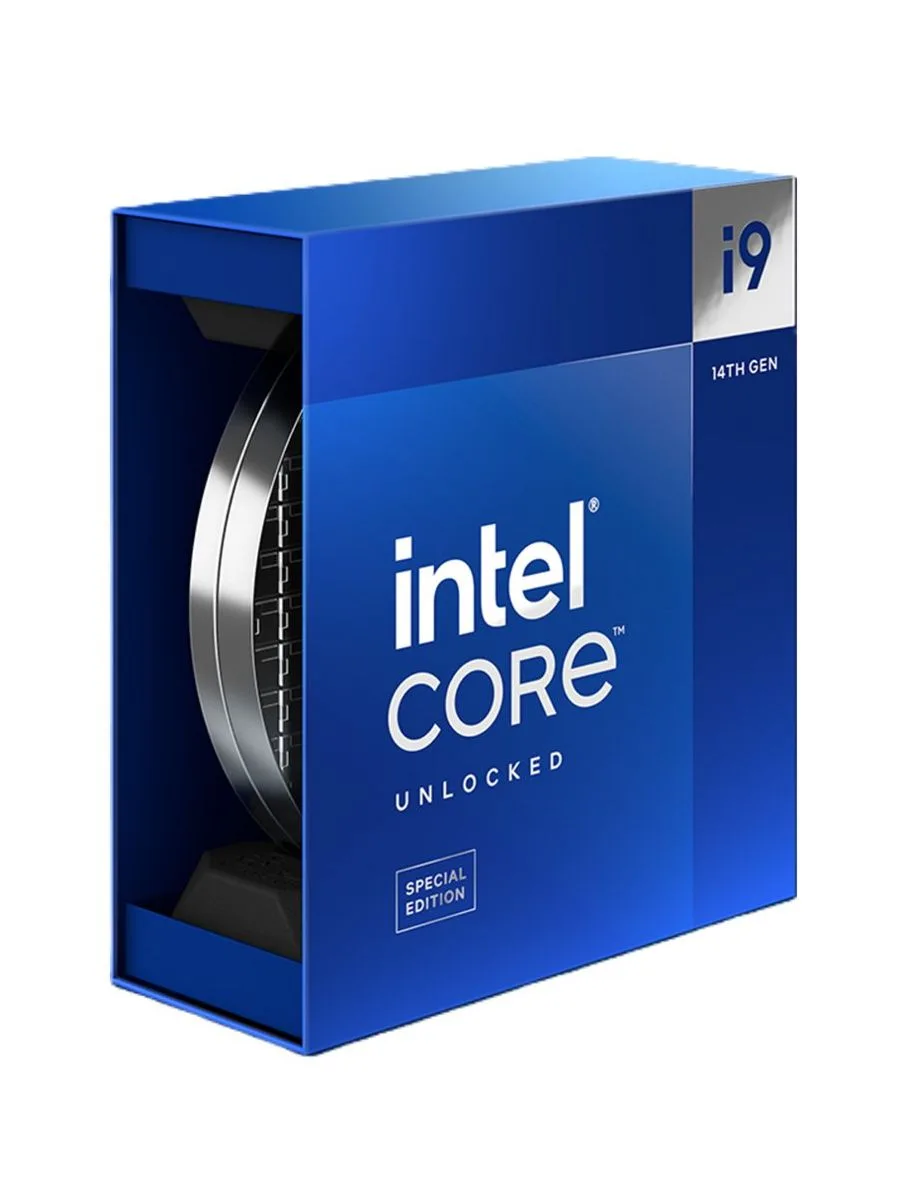

Intel Core i9-14900KS | 24 Cores | 3.2 GHz (6.2 GHz Turbo) | LGA 1700 | Processor | CPU

Warranty	1 jaar via Complies
SKU	BX8071514900KS
EAN	5032037280310
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Processor
Processor manufacturer:	Intel
Processor family:	IntelÂ® Coreâ„¢ i9
Processor generation:	IntelÂ® Coreâ„¢ i9 (14th gen)
Processor model:	i9-14900KS
Processor cores:	24
Processor socket:	LGA 1700
Box:	Yes
Cooler included:	No
Processor threads:	32
Processor operating modes:	64-bit
Performance cores:	8
Efficient cores:	16
Processor boost frequency:	6.2 GHz
Performance-core boost frequency:	5.7 GHz
Performance-core base frequency:	3.2 GHz
Efficient-core boost frequency:	4.5 GHz
Efficient-core base frequency:	2.4 GHz
Processor cache:	36 MB
Processor cache type:	Smart Cache
Processor base power:	150 W
Maximum turbo power:	253 W
Stepping:	B0
Maximum number of DMI lanes:	8
Memory bandwidth supported by processor (max):	89.6 GB/s
Processor codename:	Raptor Lake
Processor ARK ID:	237504
Memory
Maximum internal memory supported by processor:	192 GB
Memory types supported by processor:	DDR4-SDRAM, DDR5-SDRAM
Memory channels:	Dual-channel
ECC:	Yes
Non-ECC:	Yes
Memory bandwidth (max):	89.6 GB/s
Graphics
On-board graphics adapter:	Yes
Discrete graphics adapter:	No
On-board graphics adapter model:	Intel UHD Graphics 770
On-board graphics adapter outputs supported:	Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1
On-board graphics adapter base frequency:	300 MHz
On-board graphics adapter dynamic frequency (max):	1650 MHz
Number of displays supported (on-board graphics):	4
On-board graphics adapter DirectX version:	12.0
On-board graphics adapter OpenGL version:	4.5
On-board graphics adapter maximum resolution (DisplayPort):	7680 x 4320 pixels
On-board graphics adapter maximum resolution (eDP - Integrated Flat Panel):	5120 x 3200 pixels
On-board graphics adapter maximum resolution (HDMI):	4096 x 2160 pixels
On-board graphics adapter refresh rate at maximum resolution (DisplayPort):	60 Hz
On-board graphics adapter refresh rate at maximum resolution (eDP - Integrated Flat Panel):	120 Hz
On-board graphics adapter refresh rate at maximum resolution (HDMI):	60 Hz
On-board graphics adapter ID:	0xA780
Discrete graphics adapter model:	Not available
Number of execution units:	32
Multi-Format Codec Engines:	2
Features
Execute Disable Bit:	Yes
Idle States:	Yes
Thermal Monitoring Technologies:	Yes
Market segment:	Desktop
Use conditions:	PC/Client/Tablet
Maximum number of PCI Express lanes:	20
PCI Express slots version:	4.0, 5.0
PCI Express configurations:	1x16+1x4, 2x8+1x4
Supported instruction sets:	AVX 2.0, SSE4.1, SSE4.2
Scalability:	1S
CPU configuration (max):	1
Embedded options available:	No
Direct Media Interface (DMI) Revision:	4.0
Export Control Classification Number (ECCN):	5A992C
Commodity Classification Automated Tracking System (CCATS):	740.17B1
Processor special features
IntelÂ® Hyper Threading Technology (IntelÂ® HT Technology):	Yes
IntelÂ® Turbo Boost Technology:	2.0
IntelÂ® Quick Sync Video Technology:	Yes
IntelÂ® Clear Video HD Technology (IntelÂ® CVT HD):	Yes
IntelÂ® AES New Instructions (IntelÂ® AES-NI):	Yes
Enhanced Intel SpeedStep Technology:	Yes
Intel Trusted Execution Technology:	Yes
IntelÂ® Speed Shift Technology:	Yes
IntelÂ® Thermal Velocity Boost:	Yes
IntelÂ® Adaptive Boost Technology:	Yes
IntelÂ® Turbo Boost Max Technology 3.0 frequency:	5.9 GHz
IntelÂ® Gaussian & Neural Accelerator (IntelÂ® GNA) 3.0:	Yes
IntelÂ® Thermal Velocity Boost Frequency:	6.2 GHz
IntelÂ® Control-flow Enforcement Technology (CET):	Yes
IntelÂ® Thread Director:	Yes
Intel VT-x with Extended Page Tables (EPT):	Yes
IntelÂ® Secure Key:	Yes
IntelÂ® Active Management Technology (IntelÂ® AMT):	Yes
IntelÂ® OS Guard:	Yes
Intel 64:	Yes
Intel Virtualization Technology (VT-x):	Yes
Intel Virtualization Technology for Directed I/O (VT-d):	Yes
Intel Turbo Boost Max Technology 3.0:	Yes
IntelÂ® Boot Guard:	Yes
IntelÂ® Deep Learning Boost (IntelÂ® DL Boost):	Yes
IntelÂ® Volume Management Device (VMD):	Yes
Mode-based Execute Control (MBE):	Yes
IntelÂ® Standard Manageability (ISM):	Yes
IntelÂ® One-Click Recovery:	Yes
IntelÂ® Remote Platform Erase (RPE):	Yes
IntelÂ® Virtualization Technology with Redirect Protection (VT-rp):	Yes
Intel vProÂ® Enterprise Platform Eligibility:	Yes
IntelÂ® Threat Detection Technology (TDT):	Yes
IntelÂ® Hardware Shield Eligibility:	Yes
IntelÂ® Total Memory Encryption - Multi Key:	Yes
Intel vProÂ® Essentials Platform Eligibility:	Yes
Operational conditions
Tjunction:	100 Â°C
Technical details
OpenCL version:	3.0
Logistics data
Harmonized System (HS) code:	8542310001
Technical details
Launch date:	Q1'24
Status:	Launched
Weight & dimensions
Processor package size:	45 x 37.5 mm
Other features
L2 cache:	32768 KB
Maximum internal memory:	192 GB
Graphics output:	eDP 1.4b, DP 1.4a, HDMI 2.1

Productomschrijving

The Intel Core i9-14900KS is a powerful desktop processor, ideal for demanding tasks such as gaming, content creation, and multitasking. With a maximum clock speed of 6.2 GHz thanks to Intel Turbo Boost Max Technology 3.0 and Thermal Velocity Boost, this processor delivers unprecedented performance. It supports up to 192 GB of DDR4 and DDR5 memory and features integrated Intel UHD Graphics 770 for smooth graphical performance. With compatibility for PCIe 4.0 and 5.0 and an LGA 1700 socket, it is suitable for high-end systems.
