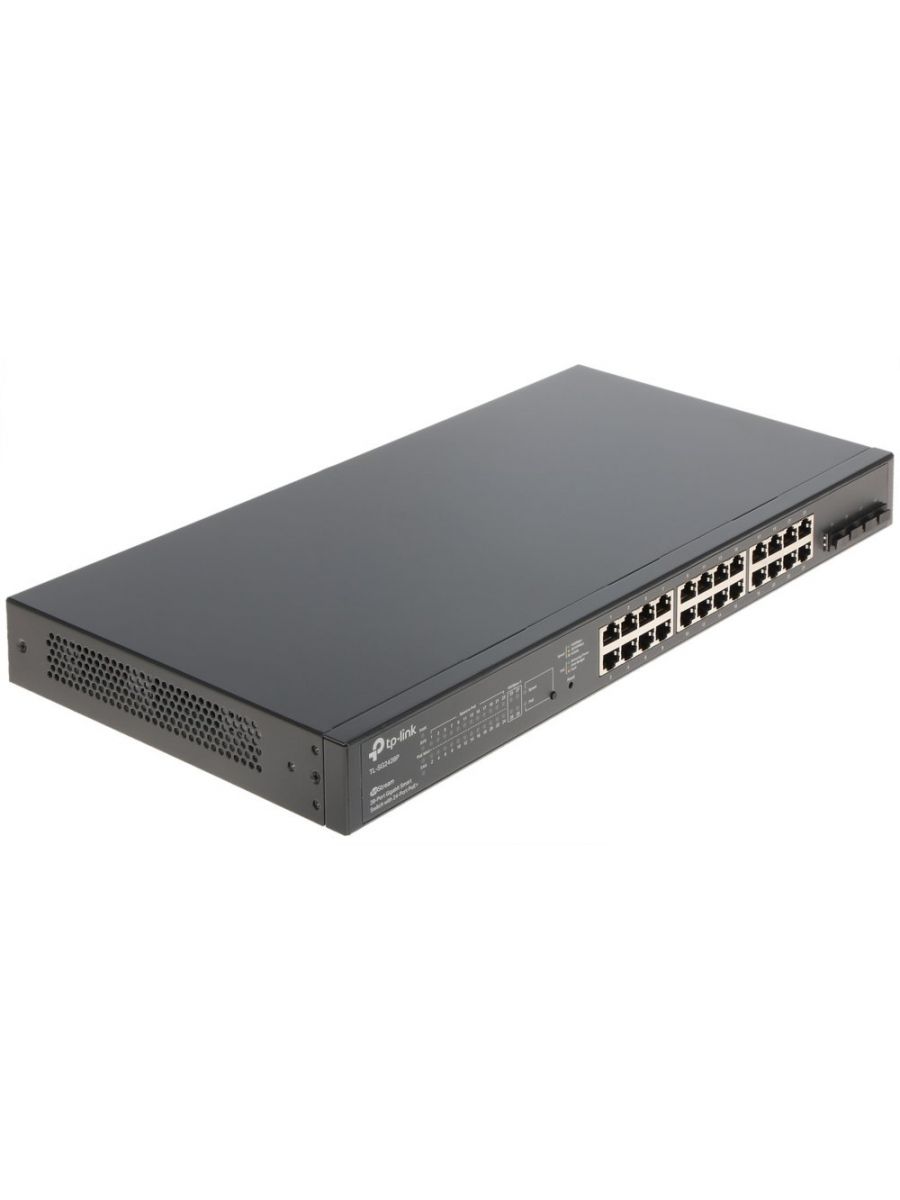

TP-Link TL-SG2428P | Managed Smart Switch | 28 Ports | Gigabit Ethernet (10/100/1000 Mbps) | 24x RJ45 + 4x SFP | PoE+ (250 W) | VLAN/QoS

Warranty	1 jaar via Complies
SKU	TL-SG2428P
EAN	6935364030650
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Management features
Quality of Service (QoS) support:	Y
Web-based management:	Y
ARP inspection:	Y
System event log:	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	24
Basic switching RJ-45 Ethernet ports type:	Gigabit Ethernet (10/100/1000)
Fiber ports quantity:	4
Fiber optic connector:	SFP
Network
Networking standards:	IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support:	N
Copper ethernet cabling technology:	10BASE-T,10BASE-TX
Cable types supported:	Cat3,Cat4,Cat5,Cat5e
Port mirroring:	Y
Flow control support:	Y
Broadcast storm control:	Y
Rate limiting:	Y
Auto MDI/MDI-X:	Y
Spanning tree protocol:	Y
Auto-negotiation:	Y
VLAN support:	Y
Virtual LAN features:	MAC address-based VLAN,Protocol-based VLAN,Voice VLAN
Number of VLANs:	4000
Multicast features
Multicast support:	Y
Data transmission
MAC address table:	8000 entries
Switching capacity:	56 Gbit/s
Forwarding rate:	41.7 Mpps
Number of queues:	8
Jumbo frames support:	Y
Jumbo frames:	9000
Optical fiber
Fiber ethernet cabling technology:	1000BASE-X
Security
DHCP features:	DHCP relay,DHCP server,DHCP snooping,DHCPv6 client
Access Control List (ACL):	Y
IGMP snooping:	Y
Security algorithms:	HTTPS,SNMP,SNMPv2,SNMPv3,SSH,SSH-2,SSL/TLS
Loop protection:	Y
BPDU filtering/protection:	Y
IP-MAC-Port binding:	Y
Authentication type:	RADIUS
Queue scheduling algorithms:	SP, WRR+SP, Weighted Round Robin (WRR)
Design
Rack mounting:	Y
Product colour:	Black
Number of fans:	2 fan(s)
Certification:	CE, FCC, RoHS
Performance
Firmware upgradeable:	Y
Power
Power consumption (max):	308.6 W
Power over Ethernet (PoE)
Power over Ethernet (PoE):	Y
Power over Ethernet (PoE) ports quantity:	24
Operational conditions
Operating temperature (T-T):	0 - 50 Â°C
Storage temperature (T-T):	-40 - 70 Â°C
Operating relative humidity (H-H):	10 - 90%
Storage relative humidity (H-H):	5 - 90%
Heat dissipation:	1052.94 BTU/h
Weight & dimensions
Width:	440 mm
Depth:	220 mm
Height:	44 mm
Packaging data
Cables included:	AC
User guide:	Y
Rack mount kit:	Y

Productomschrijving

Realize More Possibilities with Omada
JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+

Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
