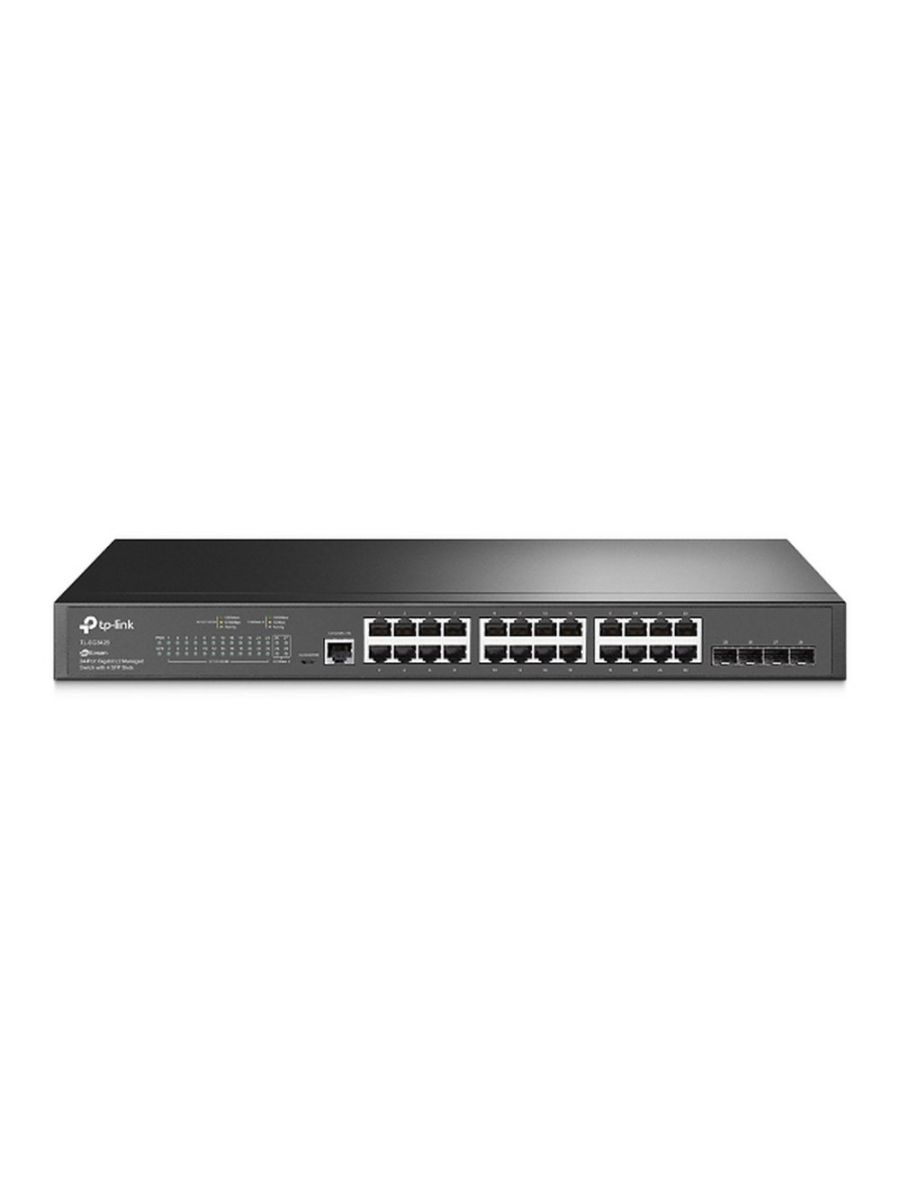

TP-Link TL-SG3428 | JetStream Managed L2 Switch | 24 Ports | Gigabit Ethernet (10/100/1000 Mbps) | 4x SFP | Omada SDN | Rackmount | Black

Warranty	2 jaar via Complies
SKU	TL-SG3428
EAN	6935364010713
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Management features
Switch type:	Managed
Switch layer:	L2
Quality of Service (QoS) support:	Y
Web-based management:	Y
Cloud-managed:	Y
ARP inspection:	Y
System event log:	Y
MIB support:	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	24
Basic switching RJ-45 Ethernet ports type:	Gigabit Ethernet (10/100/1000)
SFP module slots quantity:	4
Console port:	RJ-45/Micro-USB
Network
Networking standards:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3x
10G support:	N
Port mirroring:	Y
Policy-based routing:	Y
Flow control support:	Y
Link aggregation:	Y
Broadcast storm control:	Y
Rate limiting:	Y
Spanning tree protocol:	Y
Head-of-line (HOL) blocking:	Y
Ethernet LAN data rates:	10,100,1000 Mbit/s
VLAN support:	Y
Multicast features
Multicast support:	Y
Data transmission
MAC address table:	8000 entries
Switching capacity:	56 Gbit/s
Forwarding rate:	41.66 Mpps
Static route:	Y
Number of static routes:	48
Jumbo frames support:	Y
Security
DHCP features:	DHCP snooping
IGMP snooping:	Y
MAC address filtering:	Y
Loop protection:	Y
Authentication:	MAC-based authentication, Port-based authentication
Design
Rack mounting:	Y
Form factor:	1U
Product colour:	Black
LED indicators:	Y
Power
Power supply included:	N
AC input voltage:	100 - 240 V
AC input frequency:	50/60 Hz
Power consumption (max):	19.22 W
Power over Ethernet (PoE)
Power over Ethernet (PoE):	N
Operational conditions
Operating temperature (T-T):	0 - 45 Â°C
Storage temperature (T-T):	-40 - 70 Â°C
Operating relative humidity (H-H):	10 - 90%
Storage relative humidity (H-H):	5 - 90%
Heat dissipation:	65.58 BTU/h
Weight & dimensions
Width:	440 mm
Depth:	180 mm
Height:	44 mm
Packaging data
Cables included:	LAN (RJ-45)
Quick start guide:	Y
Logistics data
Harmonized System (HS) code:	85176990

Productomschrijving

JetStream 24-port Gigabit Switch with 4 SFP ports and L2 management.

Full gigabit ports: 24× gigabit RJ45 ports and 4× gigabit SFP ports provide super-fast connections.

Integrated with Omada SDN: Zero-Touch Provisioning (ZTP)*, centralised cloud management and smart monitoring.

Centralised management: Cloud access and Omada app for added convenience and easy management.

Static routing: Static routing helps direct internal traffic to make more efficient use of network resources.

Robust security strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius authentication and more.

Voice and video application optimisation: L2/L3/L4 QoS and IGMP Snooping.
Separate management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image provide powerful management options.

More…
