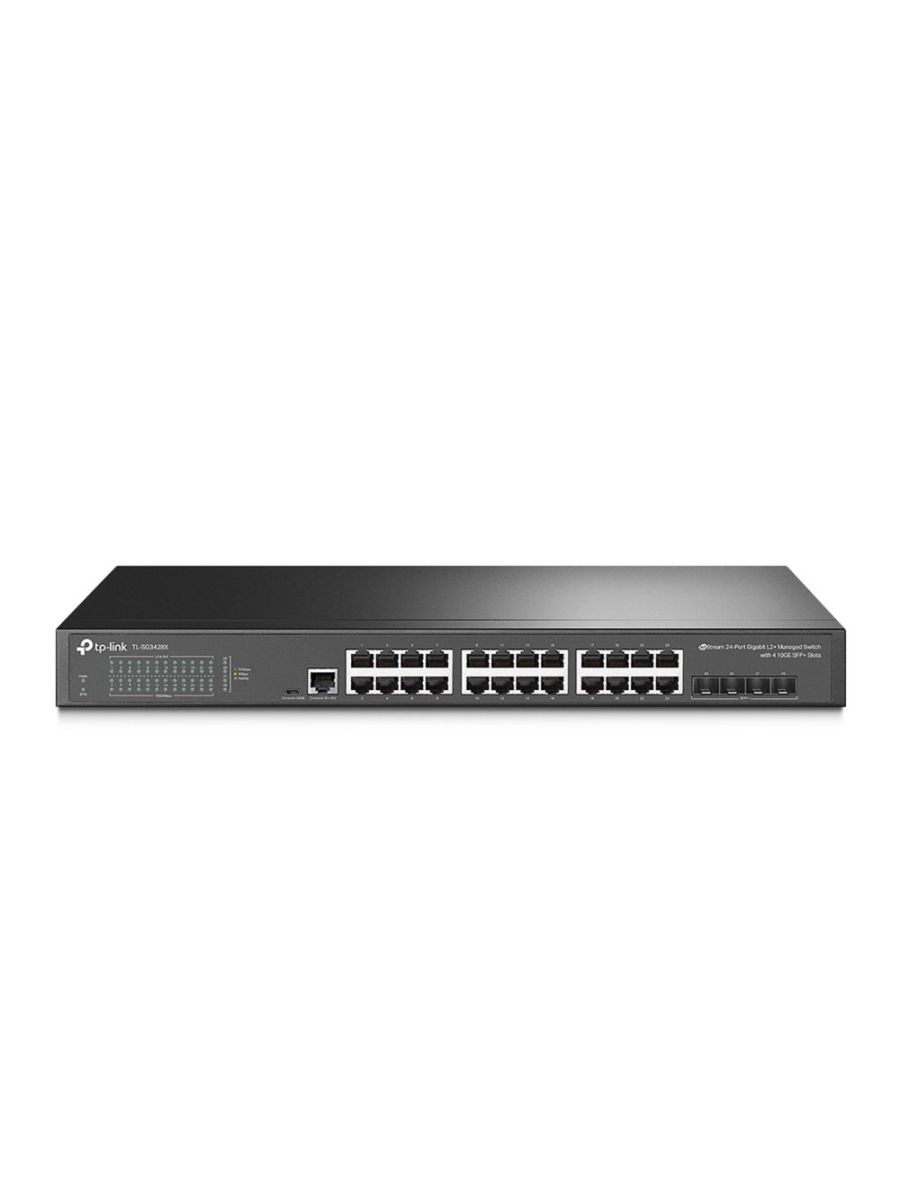

TP-Link TL-SG3428X | JetStream Managed L2+ Switch | 24 Ports | Gigabit Ethernet (10/100/1000 Mbps) | 4x 10G SFP+ | Omada SDN | Rackmount | Black

Warranty	2 jaar via Complies
SKU	TL-SG3428X
EAN	6935364010522
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Management features
Switch type:	Managed
Switch layer:	L2+
Quality of Service (QoS) support:	Y
Web-based management:	Y
Cloud-managed:	Y
ARP inspection:	Y
Configuring Location Settings (CLI):	Y
System event log:	Y
MIB support:	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	24
Basic switching RJ-45 Ethernet ports type:	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity:	4
Console port:	RJ-45/micro-USB
Network
Networking standards:	IEEE 802.11d,IEEE 802.1s,IEEE 802.1w
10G support:	N
Port mirroring:	Y
Policy-based routing:	Y
Flow control support:	Y
Link aggregation:	Y
Broadcast storm control:	Y
Rate limiting:	Y
Spanning tree protocol:	Y
Head-of-line (HOL) blocking:	Y
Ethernet LAN data rates:	10,100,1000 Mbit/s
Active link detection:	Y
VLAN support:	Y
Multicast features
Multicast support:	Y
Data transmission
MAC address table:	16000 entries
Switching capacity:	128 Gbit/s
Forwarding rate:	95.23 Mpps
Number of static routes:	48
Jumbo frames support:	Y
Security
DHCP features:	DHCP snooping
IGMP snooping:	Y
IGMP proxy:	Y
Loop protection:	Y
Design
Rack mounting:	Y
Product colour:	Black
LED indicators:	Y
Power
Power supply included:	Y
AC input voltage:	100 - 240 V
AC input frequency:	50/60 Hz
Power consumption (typical):	23.6 W
Power over Ethernet (PoE)
Power over Ethernet (PoE):	N
Operational conditions
Operating temperature (T-T):	0 - 45 Â°C
Storage temperature (T-T):	-40 - 70 Â°C
Operating relative humidity (H-H):	10 - 90%
Storage relative humidity (H-H):	5 - 90%
Heat dissipation:	80.353 BTU/h
Weight & dimensions
Width:	440 mm
Depth:	180 mm
Height:	44 mm
Packaging data
Cables included:	LAN (RJ-45)
Quick start guide:	Y

Productomschrijving

The TP-Link TL-SG3428X is a managed L2+ switch with 24 Gigabit Ethernet (10/100/1000) RJ-45 ports and a console port (RJ-45/micro-USB). With a MAC address table of 16000 entries and a switching capacity of 128 Gbps, this switch offers excellent performance and scalability. The TL-SG3428X supports network standards such as IEEE 802.11d, IEEE 802.1s, and IEEE 802.1w, ensuring advanced network functionality and reliability. Designed for rack mounting, this switch is ideal for professional use in server rooms and data centers.
